complexType PointoutType

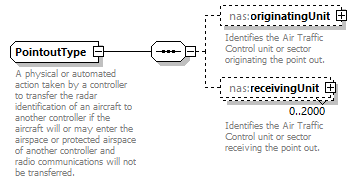

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
children	nas:originatingUnit nas:receivingUnit
used by	element  NasEnRouteType/pointout
annotation	documentation A physical or automated action taken by a controller to transfer the radar identification of an aircraft to another controller if the aircraft will or may enter the airspace or protected airspace of another controller and radio communications will not be transferred.
source	<xs:complexType name="PointoutType">   <xs:annotation>     <xs:documentation>A physical or automated action taken by a controller to transfer the radar identification of an aircraft to another controller if the aircraft will or may enter the airspace or protected airspace of another controller and radio communications will not be transferred. </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="originatingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Identifies the Air Traffic Control unit or sector originating the point out.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="receivingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>Identifies the Air Traffic Control unit or sector receiving the point out.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element PointoutType/originatingUnit

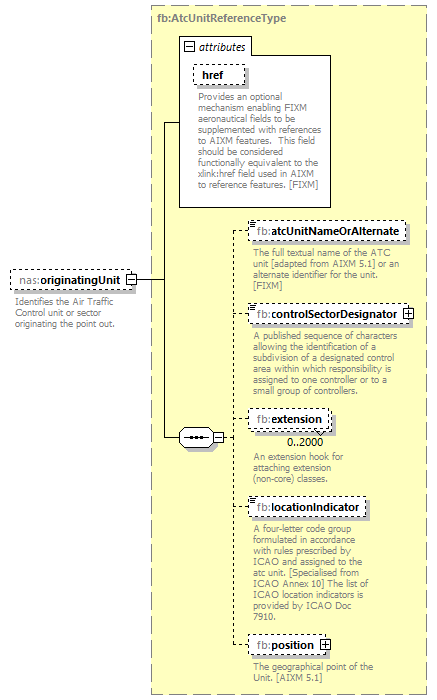

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:AtcUnitReferenceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation Identifies the Air Traffic Control unit or sector originating the point out.
source	<xs:element name="originatingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Identifies the Air Traffic Control unit or sector originating the point out.</xs:documentation>   </xs:annotation> </xs:element>

element PointoutType/receivingUnit

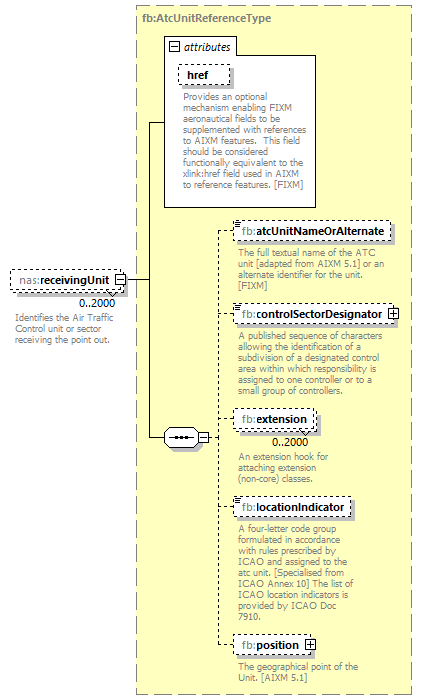

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:AtcUnitReferenceType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
children	fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation Identifies the Air Traffic Control unit or sector receiving the point out.
source	<xs:element name="receivingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>Identifies the Air Traffic Control unit or sector receiving the point out.</xs:documentation>   </xs:annotation> </xs:element>
