complexType NasEnRouteType

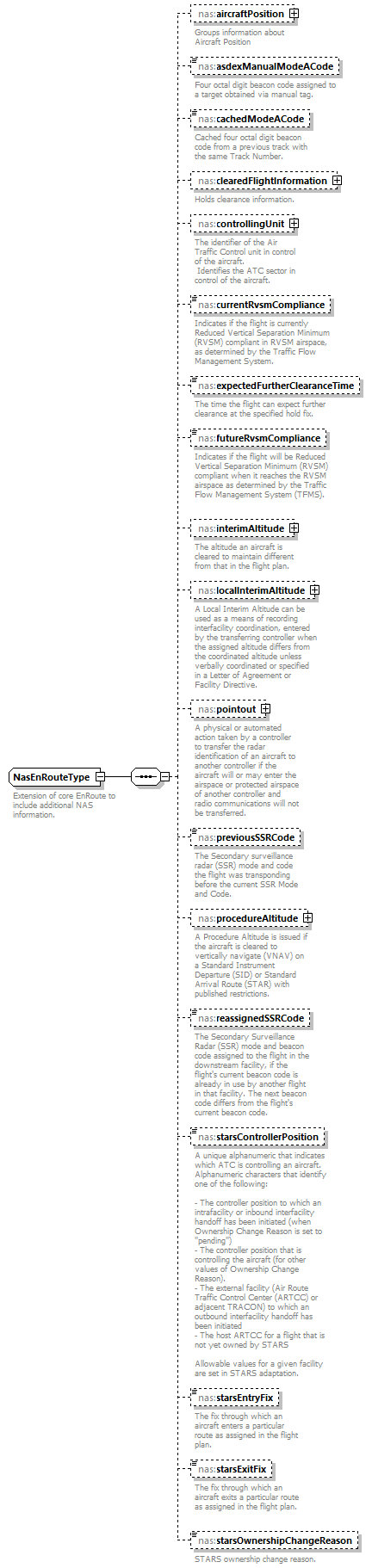

diagram Nas_diagrams/Nas_p239.png
namespace http://www.fixm.aero/ext/nas/4.4
type extension of fb:EnRouteExtensionType
properties
base fb:EnRouteExtensionType
children nas:aircraftPosition nas:asdexManualModeACode nas:cachedModeACode nas:clearedFlightInformation nas:controllingUnit nas:currentRvsmCompliance nas:expectedFurtherClearanceTime nas:futureRvsmCompliance nas:interimAltitude nas:localInterimAltitude nas:pointout nas:previousSSRCode nas:procedureAltitude nas:reassignedSSRCode nas:starsControllerPosition nas:starsEntryFix nas:starsExitFix nas:starsOwnershipChangeReason
annotation
documentation
Extension of core EnRoute to include additional NAS information.
source <xs:complexType name="NasEnRouteType">
  <xs:annotation>
    <xs:documentation>Extension of core EnRoute to include additional NAS information.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="fb:EnRouteExtensionType">
      <xs:sequence>
        <xs:element name="aircraftPosition" type="nas:NasAircraftPositionType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Groups information about Aircraft Position</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="asdexManualModeACode" type="fb:ModeACodeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Four octal digit beacon code assigned to a target obtained via manual tag.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="cachedModeACode" type="fb:ModeACodeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Cached four octal digit beacon code from a previous track with the same Track Number.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="clearedFlightInformation" type="nas:NasClearedFlightInformationType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Holds clearance information.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="controllingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The identifier of the Air Traffic Control unit in control of the aircraft.
Identifies the ATC sector in control of the aircraft. </xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="currentRvsmCompliance" type="nas:RvsmFlightIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Indicates if the flight is currently Reduced Vertical Separation Minimum (RVSM) compliant in RVSM airspace, as determined by the Traffic Flow Management System.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="expectedFurtherClearanceTime" type="fb:DateTimeUtcType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The time the flight can expect further clearance at the specified hold fix.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="futureRvsmCompliance" type="nas:RvsmFlightIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>Indicates if the flight will be Reduced Vertical Separation Minimum (RVSM) compliant when it reaches the RVSM airspace as determined by the Traffic Flow Management System (TFMS).</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="interimAltitude" type="fb:FlightLevelOrAltitudeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The altitude an aircraft is cleared to maintain different from that in the flight plan.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="localInterimAltitude" type="fb:FlightLevelOrAltitudeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>A Local Interim Altitude can be used as a means of recording interfacility coordination, entered by the transferring controller when the assigned altitude differs from the coordinated altitude unless verbally coordinated or specified in a Letter of Agreement or Facility Directive.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="pointout" type="nas:PointoutType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>A physical or automated action taken by a controller to transfer the radar identification of an aircraft to another controller if the aircraft will or may enter the airspace or protected airspace of another controller and radio communications will not be transferred. </xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="previousSSRCode" type="fb:ModeACodeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Secondary surveillance radar (SSR) mode and code the flight was transponding before the current SSR Mode and Code.</xs:documentation>
          </xs:annotation>
        </xs:element>

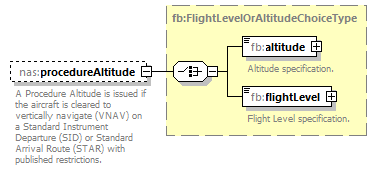

        <xs:element name="procedureAltitude" type="fb:FlightLevelOrAltitudeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>A Procedure Altitude is issued if the aircraft is cleared to vertically navigate (VNAV) on a Standard Instrument Departure (SID) or Standard Arrival Route (STAR) with published restrictions.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="reassignedSSRCode" type="fb:ModeACodeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Secondary Surveillance Radar (SSR) mode and beacon code assigned to the flight in the downstream facility, if the flight's current beacon code is already in use by another flight in that facility. The next beacon code differs from the flight's current beacon code.</xs:documentation>
          </xs:annotation>
        </xs:element>

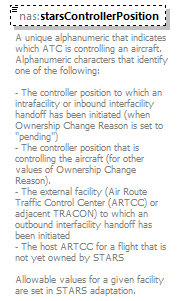

        <xs:element name="starsControllerPosition" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>A unique alphanumeric that indicates which ATC is controlling an aircraft.  Alphanumeric characters that identify one of the following:

- The controller position to which an intrafacility or inbound interfacility handoff has been initiated (when Ownership Change Reason is set to "pending")
- The controller position that is controlling the aircraft (for other values of Ownership Change Reason).
- The external facility (Air Route Traffic Control Center (ARTCC) or adjacent TRACON) to which an outbound interfacility handoff has been initiated
- The host ARTCC for a flight that is not yet owned by STARS

Allowable values for a given facility are set in STARS adaptation.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="starsEntryFix" type="fb:TextNameType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The fix through which an aircraft enters a particular route as assigned in the flight plan.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="starsExitFix" type="fb:TextNameType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The fix through which an aircraft exits a particular route as assigned in the flight plan.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="starsOwnershipChangeReason" type="nas:OwnershipChangeReasonTypeType" nillable="true" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>STARS ownership change reason.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element NasEnRouteType/aircraftPosition

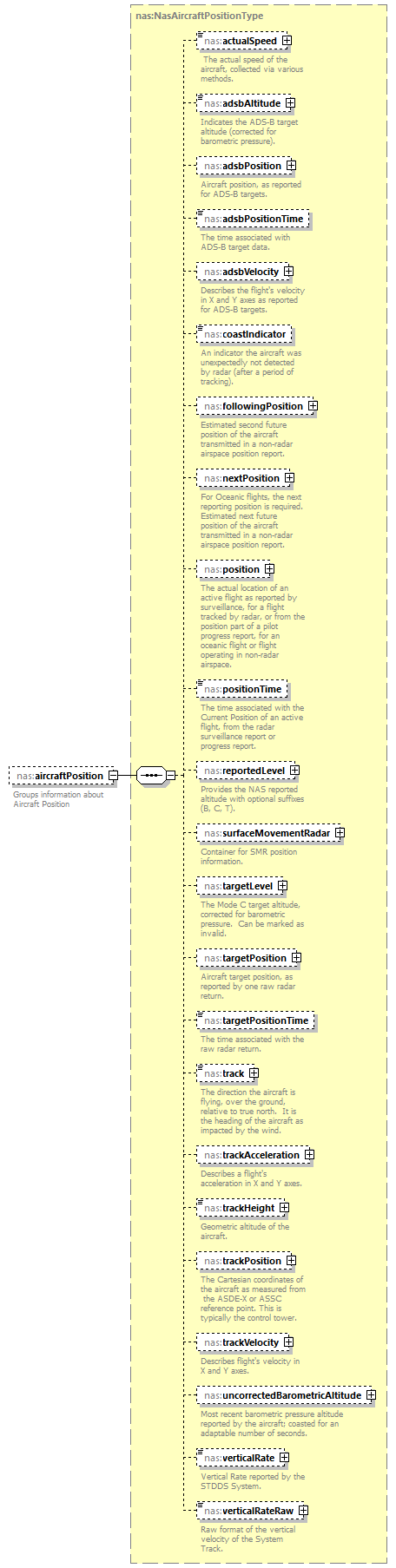

diagram Nas_diagrams/Nas_p240.png
namespace http://www.fixm.aero/ext/nas/4.4
type nas:NasAircraftPositionType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:actualSpeed nas:adsbAltitude nas:adsbPosition nas:adsbPositionTime nas:adsbVelocity nas:coastIndicator nas:followingPosition nas:nextPosition nas:position nas:positionTime nas:reportedLevel nas:surfaceMovementRadar nas:targetLevel nas:targetPosition nas:targetPositionTime nas:track nas:trackAcceleration nas:trackHeight nas:trackPosition nas:trackVelocity nas:uncorrectedBarometricAltitude nas:verticalRate nas:verticalRateRaw
annotation
documentation
Groups information about Aircraft Position
source <xs:element name="aircraftPosition" type="nas:NasAircraftPositionType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Groups information about Aircraft Position</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/asdexManualModeACode
diagram Nas_diagrams/Nas_p241.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:ModeACodeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [0-7]{4}
annotation
documentation
Four octal digit beacon code assigned to a target obtained via manual tag.
source <xs:element name="asdexManualModeACode" type="fb:ModeACodeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Four octal digit beacon code assigned to a target obtained via manual tag.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/cachedModeACode
diagram Nas_diagrams/Nas_p242.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:ModeACodeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [0-7]{4}
annotation
documentation
Cached four octal digit beacon code from a previous track with the same Track Number.
source <xs:element name="cachedModeACode" type="fb:ModeACodeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Cached four octal digit beacon code from a previous track with the same Track Number.</xs:documentation>
  </xs:annotation>
</xs:element>

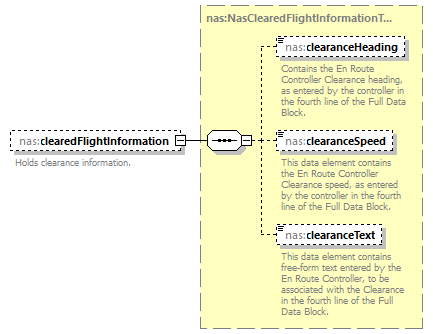

element NasEnRouteType/clearedFlightInformation
diagram Nas_diagrams/Nas_p243.png
namespace http://www.fixm.aero/ext/nas/4.4
type nas:NasClearedFlightInformationType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:clearanceHeading nas:clearanceSpeed nas:clearanceText
annotation
documentation
Holds clearance information.
source <xs:element name="clearedFlightInformation" type="nas:NasClearedFlightInformationType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Holds clearance information.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/controllingUnit

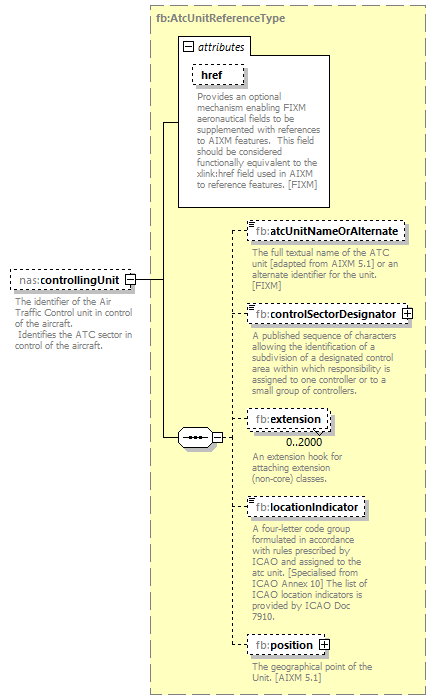

diagram Nas_diagrams/Nas_p244.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:AtcUnitReferenceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation
documentation
The identifier of the Air Traffic Control unit in control of the aircraft.
Identifies the ATC sector in control of the aircraft.
source <xs:element name="controllingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The identifier of the Air Traffic Control unit in control of the aircraft.
Identifies the ATC sector in control of the aircraft. </xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/currentRvsmCompliance
diagram Nas_diagrams/Nas_p245.png
namespace http://www.fixm.aero/ext/nas/4.4
type nas:RvsmFlightIndicatorType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration COMPLIANT
documentation
Indicates that the Flight is RVSM compliant.
enumeration NON_COMPLIANT
documentation
Indicates that the Flight is not RVSM compliant.
annotation
documentation
Indicates if the flight is currently Reduced Vertical Separation Minimum (RVSM) compliant in RVSM airspace, as determined by the Traffic Flow Management System.
source <xs:element name="currentRvsmCompliance" type="nas:RvsmFlightIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates if the flight is currently Reduced Vertical Separation Minimum (RVSM) compliant in RVSM airspace, as determined by the Traffic Flow Management System.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/expectedFurtherClearanceTime
diagram Nas_diagrams/Nas_p246.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:DateTimeUtcType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T((([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9])|24:00:00)Z
annotation
documentation
The time the flight can expect further clearance at the specified hold fix.
source <xs:element name="expectedFurtherClearanceTime" type="fb:DateTimeUtcType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The time the flight can expect further clearance at the specified hold fix.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/futureRvsmCompliance
diagram Nas_diagrams/Nas_p247.png
namespace http://www.fixm.aero/ext/nas/4.4
type nas:RvsmFlightIndicatorType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration COMPLIANT
documentation
Indicates that the Flight is RVSM compliant.
enumeration NON_COMPLIANT
documentation
Indicates that the Flight is not RVSM compliant.
annotation
documentation
Indicates if the flight will be Reduced Vertical Separation Minimum (RVSM) compliant when it reaches the RVSM airspace as determined by the Traffic Flow Management System (TFMS).
source <xs:element name="futureRvsmCompliance" type="nas:RvsmFlightIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Indicates if the flight will be Reduced Vertical Separation Minimum (RVSM) compliant when it reaches the RVSM airspace as determined by the Traffic Flow Management System (TFMS).</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/interimAltitude

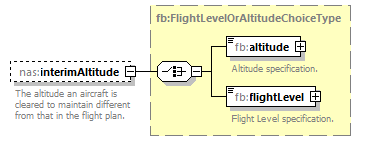

diagram Nas_diagrams/Nas_p248.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:FlightLevelOrAltitudeChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:altitude fb:flightLevel
annotation
documentation
The altitude an aircraft is cleared to maintain different from that in the flight plan.
source <xs:element name="interimAltitude" type="fb:FlightLevelOrAltitudeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The altitude an aircraft is cleared to maintain different from that in the flight plan.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/localInterimAltitude

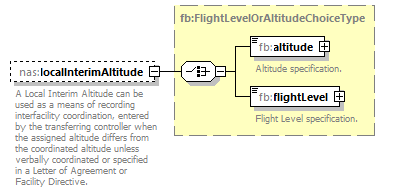

diagram Nas_diagrams/Nas_p249.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:FlightLevelOrAltitudeChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:altitude fb:flightLevel
annotation
documentation
A Local Interim Altitude can be used as a means of recording interfacility coordination, entered by the transferring controller when the assigned altitude differs from the coordinated altitude unless verbally coordinated or specified in a Letter of Agreement or Facility Directive.
source <xs:element name="localInterimAltitude" type="fb:FlightLevelOrAltitudeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A Local Interim Altitude can be used as a means of recording interfacility coordination, entered by the transferring controller when the assigned altitude differs from the coordinated altitude unless verbally coordinated or specified in a Letter of Agreement or Facility Directive.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/pointout

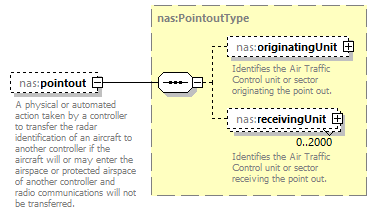

diagram Nas_diagrams/Nas_p250.png
namespace http://www.fixm.aero/ext/nas/4.4
type nas:PointoutType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:originatingUnit nas:receivingUnit
annotation
documentation
A physical or automated action taken by a controller to transfer the radar identification of an aircraft to another controller if the aircraft will or may enter the airspace or protected airspace of another controller and radio communications will not be transferred.
source <xs:element name="pointout" type="nas:PointoutType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A physical or automated action taken by a controller to transfer the radar identification of an aircraft to another controller if the aircraft will or may enter the airspace or protected airspace of another controller and radio communications will not be transferred. </xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/previousSSRCode
diagram Nas_diagrams/Nas_p251.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:ModeACodeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [0-7]{4}
annotation
documentation
The Secondary surveillance radar (SSR) mode and code the flight was transponding before the current SSR Mode and Code.
source <xs:element name="previousSSRCode" type="fb:ModeACodeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Secondary surveillance radar (SSR) mode and code the flight was transponding before the current SSR Mode and Code.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/procedureAltitude
diagram Nas_diagrams/Nas_p252.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:FlightLevelOrAltitudeChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:altitude fb:flightLevel
annotation
documentation
A Procedure Altitude is issued if the aircraft is cleared to vertically navigate (VNAV) on a Standard Instrument Departure (SID) or Standard Arrival Route (STAR) with published restrictions.
source <xs:element name="procedureAltitude" type="fb:FlightLevelOrAltitudeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A Procedure Altitude is issued if the aircraft is cleared to vertically navigate (VNAV) on a Standard Instrument Departure (SID) or Standard Arrival Route (STAR) with published restrictions.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/reassignedSSRCode
diagram Nas_diagrams/Nas_p253.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:ModeACodeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [0-7]{4}
annotation
documentation
The Secondary Surveillance Radar (SSR) mode and beacon code assigned to the flight in the downstream facility, if the flight's current beacon code is already in use by another flight in that facility. The next beacon code differs from the flight's current beacon code.
source <xs:element name="reassignedSSRCode" type="fb:ModeACodeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Secondary Surveillance Radar (SSR) mode and beacon code assigned to the flight in the downstream facility, if the flight's current beacon code is already in use by another flight in that facility. The next beacon code differs from the flight's current beacon code.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/starsControllerPosition
diagram Nas_diagrams/Nas_p254.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
A unique alphanumeric that indicates which ATC is controlling an aircraft.  Alphanumeric characters that identify one of the following:

- The controller position to which an intrafacility or inbound interfacility handoff has been initiated (when Ownership Change Reason is set to "pending")
- The controller position that is controlling the aircraft (for other values of Ownership Change Reason).
- The external facility (Air Route Traffic Control Center (ARTCC) or adjacent TRACON) to which an outbound interfacility handoff has been initiated
- The host ARTCC for a flight that is not yet owned by STARS

Allowable values for a given facility are set in STARS adaptation.
source <xs:element name="starsControllerPosition" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A unique alphanumeric that indicates which ATC is controlling an aircraft.  Alphanumeric characters that identify one of the following:

- The controller position to which an intrafacility or inbound interfacility handoff has been initiated (when Ownership Change Reason is set to "pending")
- The controller position that is controlling the aircraft (for other values of Ownership Change Reason).
- The external facility (Air Route Traffic Control Center (ARTCC) or adjacent TRACON) to which an outbound interfacility handoff has been initiated
- The host ARTCC for a flight that is not yet owned by STARS

Allowable values for a given facility are set in STARS adaptation.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/starsEntryFix
diagram Nas_diagrams/Nas_p255.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:TextNameType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !&quot;&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
annotation
documentation
The fix through which an aircraft enters a particular route as assigned in the flight plan.
source <xs:element name="starsEntryFix" type="fb:TextNameType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The fix through which an aircraft enters a particular route as assigned in the flight plan.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/starsExitFix
diagram Nas_diagrams/Nas_p256.png
namespace http://www.fixm.aero/ext/nas/4.4
type fb:TextNameType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 60
pattern ([A-Z]|[0-9]|[, !&quot;&amp;#$%'\(\)\*\+\-\./:;&lt;=&gt;\?@\[\\\]\^_\|\{\}])*
annotation
documentation
The fix through which an aircraft exits a particular route as assigned in the flight plan.
source <xs:element name="starsExitFix" type="fb:TextNameType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The fix through which an aircraft exits a particular route as assigned in the flight plan.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasEnRouteType/starsOwnershipChangeReason
diagram Nas_diagrams/Nas_p257.png
namespace http://www.fixm.aero/ext/nas/4.4
type nas:OwnershipChangeReasonTypeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration AUTOMATIC
documentation
Automatic
enumeration CONSOLIDATION
documentation
Consolidation
enumeration DIRECTED_HANDOFF
documentation
Directed handoff
enumeration INTRAFACILITY_HANDOFF
documentation
Intrafacility handoff
enumeration MANUAL
documentation
Manual
enumeration NO_CHANGE
documentation
No change
enumeration NORMAL_HANDOFF
documentation
Normal handoff
enumeration PENDING
documentation
Pending
annotation
documentation
STARS ownership change reason.
source <xs:element name="starsOwnershipChangeReason" type="nas:OwnershipChangeReasonTypeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>STARS ownership change reason.</xs:documentation>
  </xs:annotation>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
