complexType GeometricDilutionOfPrecisionType

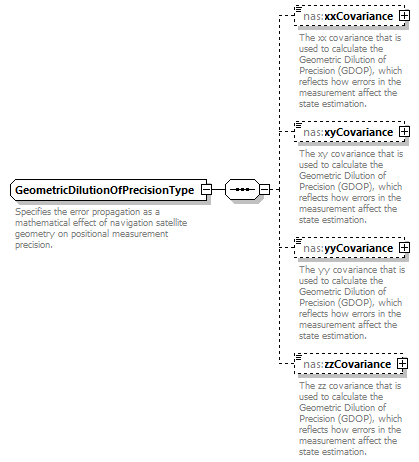

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
children	nas:xxCovariance nas:xyCovariance nas:yyCovariance nas:zzCovariance
used by	element  AsdexProvenanceType/geometricDilutionOfPrecision
annotation	documentation Specifies the error propagation as a mathematical effect of navigation satellite geometry on positional measurement precision.
source	<xs:complexType name="GeometricDilutionOfPrecisionType">   <xs:annotation>     <xs:documentation>Specifies the error propagation as a mathematical effect of navigation satellite geometry on positional measurement precision.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="xxCovariance" type="nas:NasDistanceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The xx covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="xyCovariance" type="nas:AreaType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The xy covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="yyCovariance" type="nas:NasDistanceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The yy covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="zzCovariance" type="nas:AreaType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The zz covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element GeometricDilutionOfPrecisionType/xxCovariance

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:NasDistanceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomLengthType   required         documentation Unit of measure
annotation	documentation The xx covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.
source	<xs:element name="xxCovariance" type="nas:NasDistanceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The xx covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.</xs:documentation>   </xs:annotation> </xs:element>

element GeometricDilutionOfPrecisionType/xyCovariance

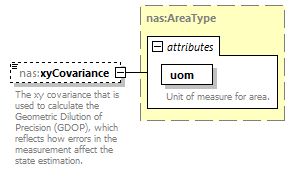

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:AreaType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation uom   nas:UomAreaType   required         documentation Unit of measure for area.
annotation	documentation The xy covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.
source	<xs:element name="xyCovariance" type="nas:AreaType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The xy covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.</xs:documentation>   </xs:annotation> </xs:element>

element GeometricDilutionOfPrecisionType/yyCovariance

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:NasDistanceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomLengthType   required         documentation Unit of measure
annotation	documentation The yy covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.
source	<xs:element name="yyCovariance" type="nas:NasDistanceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The yy covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.</xs:documentation>   </xs:annotation> </xs:element>

element GeometricDilutionOfPrecisionType/zzCovariance

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:AreaType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation uom   nas:UomAreaType   required         documentation Unit of measure for area.
annotation	documentation The zz covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.
source	<xs:element name="zzCovariance" type="nas:AreaType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The zz covariance that is used to calculate the Geometric Dilution of Precision (GDOP), which reflects how errors in the measurement affect the state estimation.</xs:documentation>   </xs:annotation> </xs:element>
