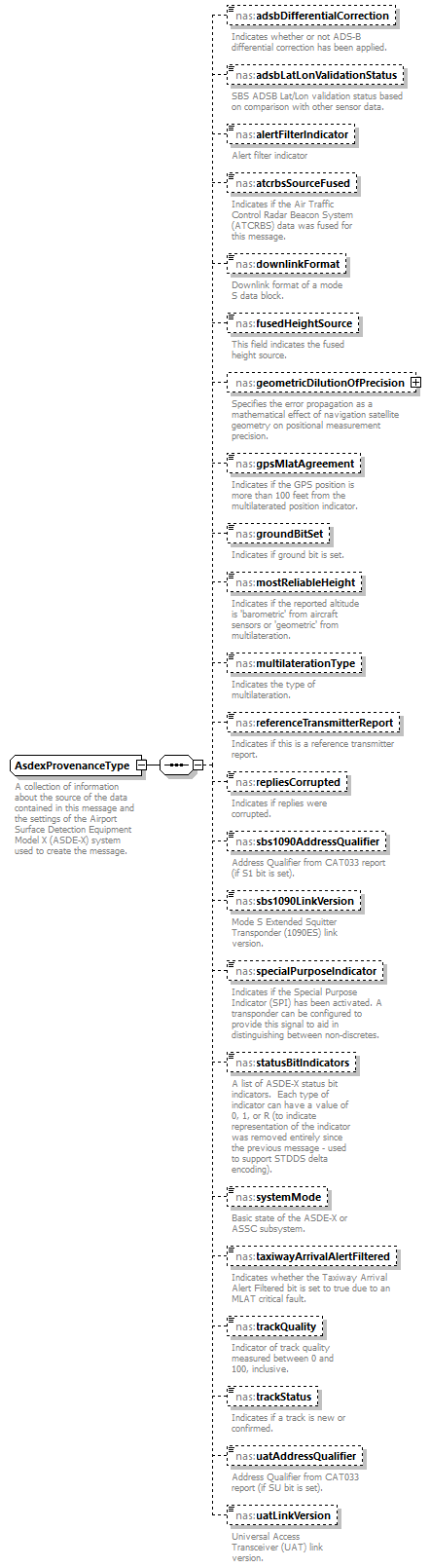

complexType AsdexProvenanceType

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
children	nas:adsbDifferentialCorrection nas:adsbLatLonValidationStatus nas:alertFilterIndicator nas:atcrbsSourceFused nas:downlinkFormat nas:fusedHeightSource nas:geometricDilutionOfPrecision nas:gpsMlatAgreement nas:groundBitSet nas:mostReliableHeight nas:multilaterationType nas:referenceTransmitterReport nas:repliesCorrupted nas:sbs1090AddressQualifier nas:sbs1090LinkVersion nas:specialPurposeIndicator nas:statusBitIndicators nas:systemMode nas:taxiwayArrivalAlertFiltered nas:trackQuality nas:trackStatus nas:uatAddressQualifier nas:uatLinkVersion
used by	element  MessageMetadataType/asdexProvenance
annotation	documentation A collection of information about the source of the data contained in this message and the settings of the Airport Surface Detection Equipment Model X (ASDE-X) system used to create the message.
source	<xs:complexType name="AsdexProvenanceType">   <xs:annotation>     <xs:documentation>A collection of information about the source of the data contained in this message and the settings of the Airport Surface Detection Equipment Model X (ASDE-X) system used to create the message.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="adsbDifferentialCorrection" type="nas:AppliedindicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates whether or not ADS-B differential correction has been applied.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="adsbLatLonValidationStatus" type="nas:AdsbValidationStatusType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>SBS ADSB Lat/Lon validation status based on comparison with other sensor data.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="alertFilterIndicator" type="nas:AlertFilterIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Alert filter indicator</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="atcrbsSourceFused" type="nas:FusedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if the Air Traffic Control Radar Beacon System (ATCRBS) data was fused for this message.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="downlinkFormat" type="nas:DownlinkFormatType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Downlink format of a mode S data block.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="fusedHeightSource" type="nas:FusedHeightSourceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>This field indicates the fused height source.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="geometricDilutionOfPrecision" type="nas:GeometricDilutionOfPrecisionType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Specifies the error propagation as a mathematical effect of navigation satellite geometry on positional measurement precision.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="gpsMlatAgreement" type="nas:GpsMlatAgreementIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if the GPS position is more than 100 feet from the multilaterated position indicator.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="groundBitSet" type="nas:GroundBitSetIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if ground bit is set.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="mostReliableHeight" type="nas:MostReliableHeightType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if the reported altitude is 'barometric' from aircraft sensors or 'geometric' from multilateration.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="multilaterationType" type="nas:MultilaterationTypeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates the type of multilateration.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="referenceTransmitterReport" type="nas:ReferenceIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if this is a reference transmitter report.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="repliesCorrupted" type="nas:CorruptIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if replies were corrupted.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="sbs1090AddressQualifier" type="nas:AddressQualifierType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Address Qualifier from CAT033 report (if S1 bit is set).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="sbs1090LinkVersion" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Mode S Extended Squitter Transponder (1090ES) link version.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="specialPurposeIndicator" type="nas:ActivatedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if the Special Purpose Indicator (SPI) has been activated. A transponder can be configured to provide this signal to aid in distinguishing between non-discretes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="statusBitIndicators" type="nas:StatusBitIndicatorsListType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>A list of ASDE-X status bit indicators.  Each type of indicator can have a value of 0, 1, or R (to indicate representation of the indicator was removed entirely since the previous message - used to support STDDS delta encoding).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="systemMode" type="nas:AsdexSystemModeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Basic state of the ASDE-X or ASSC subsystem.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="taxiwayArrivalAlertFiltered" type="nas:FilteredIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates whether the Taxiway Arrival Alert Filtered bit is set to true due to an MLAT critical fault.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="trackQuality" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicator of track quality measured between 0 and 100, inclusive.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="trackStatus" type="nas:TrackStatusType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if a track is new or confirmed.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="uatAddressQualifier" type="nas:AddressQualifierType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Address Qualifier from CAT033 report (if SU bit is set).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="uatLinkVersion" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Universal Access Transceiver (UAT) link version.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element AsdexProvenanceType/adsbDifferentialCorrection

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:AppliedindicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  APPLIED documentation ADS-B differential correction applied. enumeration  NOT_APPLIED documentation ADS-B differential correction not applied.
annotation	documentation Indicates whether or not ADS-B differential correction has been applied.
source	<xs:element name="adsbDifferentialCorrection" type="nas:AppliedindicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates whether or not ADS-B differential correction has been applied.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/adsbLatLonValidationStatus

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:AdsbValidationStatusType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  INVALID documentation ADS-B report determined to be invalid enumeration  RESERVED documentation Reserved enumeration  UNKNOWN documentation Validation status unknown enumeration  VALID documentation ADS-B report determined to be valid
annotation	documentation SBS ADSB Lat/Lon validation status based on comparison with other sensor data.
source	<xs:element name="adsbLatLonValidationStatus" type="nas:AdsbValidationStatusType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>SBS ADSB Lat/Lon validation status based on comparison with other sensor data.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/alertFilterIndicator

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:AlertFilterIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  FILTERED documentation Filtered; Don't Highlight on Display enumeration  HIGHLIGHT documentation Filtered; Highlight on Display enumeration  UNFILTERED documentation Not Filtered
annotation	documentation Alert filter indicator
source	<xs:element name="alertFilterIndicator" type="nas:AlertFilterIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Alert filter indicator</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/atcrbsSourceFused

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:FusedIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  FUSED documentation Fused bit was set. enumeration  NOT_FUSED documentation Fused bit was not set.
annotation	documentation Indicates if the Air Traffic Control Radar Beacon System (ATCRBS) data was fused for this message.
source	<xs:element name="atcrbsSourceFused" type="nas:FusedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if the Air Traffic Control Radar Beacon System (ATCRBS) data was fused for this message.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/downlinkFormat

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:DownlinkFormatType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  DF0 documentation Short air to air surveillance enumeration  DF11 documentation All-Call reply containing aircraft address enumeration  DF17 documentation Extended squitter enumeration  DF18 documentation TIS-B enumeration  DF4 documentation Surveillance, altitude reply enumeration  DF5 documentation Surveillance, Mode A identity reply
annotation	documentation Downlink format of a mode S data block.
source	<xs:element name="downlinkFormat" type="nas:DownlinkFormatType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Downlink format of a mode S data block.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/fusedHeightSource

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:FusedHeightSourceType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  ADSB documentation ADS-B height only enumeration  GROUND documentation On-ground height only enumeration  MODEC documentation Mode C height only enumeration  MULTILAT documentation 3D multilateration height only enumeration  MULTIPLE documentation Multiple height sources enumeration  NONE documentation No source
annotation	documentation This field indicates the fused height source.
source	<xs:element name="fusedHeightSource" type="nas:FusedHeightSourceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>This field indicates the fused height source.</xs:documentation>   </xs:annotation> </xs:element>

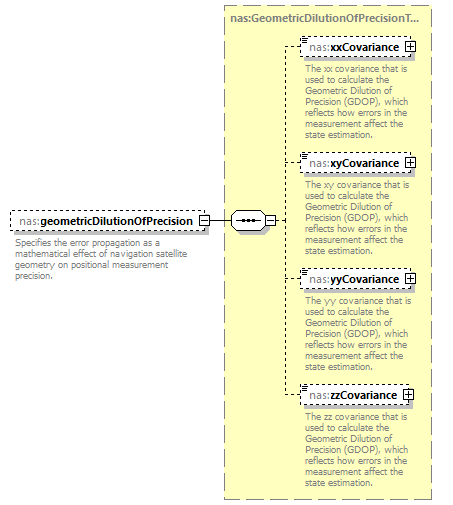

element AsdexProvenanceType/geometricDilutionOfPrecision

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:GeometricDilutionOfPrecisionType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:xxCovariance nas:xyCovariance nas:yyCovariance nas:zzCovariance
annotation	documentation Specifies the error propagation as a mathematical effect of navigation satellite geometry on positional measurement precision.
source	<xs:element name="geometricDilutionOfPrecision" type="nas:GeometricDilutionOfPrecisionType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Specifies the error propagation as a mathematical effect of navigation satellite geometry on positional measurement precision.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/gpsMlatAgreement

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:GpsMlatAgreementIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  GREATER_THAN_100_FEET documentation The GPS position is more than 100 feet from the multilaterated position indicator. enumeration  OK documentation The GPS position is not more than 100 feet from the multilaterated position indicator.
annotation	documentation Indicates if the GPS position is more than 100 feet from the multilaterated position indicator.
source	<xs:element name="gpsMlatAgreement" type="nas:GpsMlatAgreementIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if the GPS position is more than 100 feet from the multilaterated position indicator.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/groundBitSet

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:GroundBitSetIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  NOT_SET documentation Ground bit not set. enumeration  SET documentation Ground bit set.
annotation	documentation Indicates if ground bit is set.
source	<xs:element name="groundBitSet" type="nas:GroundBitSetIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if ground bit is set.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/mostReliableHeight

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:MostReliableHeightType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  BAROMETRIC documentation Barometric (Mode C) Altitude enumeration  GEOMETRIC documentation Geometric Altitude
annotation	documentation Indicates if the reported altitude is 'barometric' from aircraft sensors or 'geometric' from multilateration.
source	<xs:element name="mostReliableHeight" type="nas:MostReliableHeightType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if the reported altitude is 'barometric' from aircraft sensors or 'geometric' from multilateration.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/multilaterationType

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:MultilaterationTypeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  ATCRBS documentation ATCRBS multilateration enumeration  MODE_S_OR_UAT documentation Mode S or UAT multilateration
annotation	documentation Indicates the type of multilateration.
source	<xs:element name="multilaterationType" type="nas:MultilaterationTypeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates the type of multilateration.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/referenceTransmitterReport

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:ReferenceIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  NOT_REFERENCE documentation This is not a reference transmitter report. enumeration  REFERENCE documentation This is a reference transmitter report.
annotation	documentation Indicates if this is a reference transmitter report.
source	<xs:element name="referenceTransmitterReport" type="nas:ReferenceIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if this is a reference transmitter report.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/repliesCorrupted

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:CorruptIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  CORRUPTED enumeration  NOT_CORRUPTED
annotation	documentation Indicates if replies were corrupted.
source	<xs:element name="repliesCorrupted" type="nas:CorruptIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if replies were corrupted.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/sbs1090AddressQualifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:AddressQualifierType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  ADSBICAO documentation ADS-B target with ICAO address enumeration  ADSBSA documentation ADS-B target with self-assigned address enumeration  BEACON documentation Fixed beacon enumeration  TISBICAO documentation TIS-B target with ICAO address enumeration  TISBTFI documentation TIS-B target with track file id enumeration  VEHICLE documentation Surface vehicle
annotation	documentation Address Qualifier from CAT033 report (if S1 bit is set).
source	<xs:element name="sbs1090AddressQualifier" type="nas:AddressQualifierType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Address Qualifier from CAT033 report (if S1 bit is set).</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/sbs1090LinkVersion

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation Mode S Extended Squitter Transponder (1090ES) link version.
source	<xs:element name="sbs1090LinkVersion" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Mode S Extended Squitter Transponder (1090ES) link version.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/specialPurposeIndicator

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:ActivatedIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  ACTIVATED documentation SPI activated. enumeration  NOT_ACTIVATED documentation SPI not activated.
annotation	documentation Indicates if the Special Purpose Indicator (SPI) has been activated. A transponder can be configured to provide this signal to aid in distinguishing between non-discretes.
source	<xs:element name="specialPurposeIndicator" type="nas:ActivatedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if the Special Purpose Indicator (SPI) has been activated. A transponder can be configured to provide this signal to aid in distinguishing between non-discretes.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/statusBitIndicators

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:StatusBitIndicatorsListType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation A list of ASDE-X status bit indicators.  Each type of indicator can have a value of 0, 1, or R (to indicate representation of the indicator was removed entirely since the previous message - used to support STDDS delta encoding).
source	<xs:element name="statusBitIndicators" type="nas:StatusBitIndicatorsListType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>A list of ASDE-X status bit indicators.  Each type of indicator can have a value of 0, 1, or R (to indicate representation of the indicator was removed entirely since the previous message - used to support STDDS delta encoding).</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/systemMode

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:AsdexSystemModeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  MAINTENANCE documentation Indicates the system is in maintenance mode. enumeration  OPERATIONAL documentation Indicates the system is in operational mode.
annotation	documentation Basic state of the ASDE-X or ASSC subsystem.
source	<xs:element name="systemMode" type="nas:AsdexSystemModeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Basic state of the ASDE-X or ASSC subsystem.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/taxiwayArrivalAlertFiltered

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:FilteredIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  FILTERED documentation Filtered bit is set to true. enumeration  NOT_FILTERED documentation Filtered bit is set to false.
annotation	documentation Indicates whether the Taxiway Arrival Alert Filtered bit is set to true due to an MLAT critical fault.
source	<xs:element name="taxiwayArrivalAlertFiltered" type="nas:FilteredIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates whether the Taxiway Arrival Alert Filtered bit is set to true due to an MLAT critical fault.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/trackQuality

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation Indicator of track quality measured between 0 and 100, inclusive.
source	<xs:element name="trackQuality" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicator of track quality measured between 0 and 100, inclusive.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/trackStatus

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:TrackStatusType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  CONFIRMED documentation Confirmed track enumeration  NEW documentation New track
annotation	documentation Indicates if a track is new or confirmed.
source	<xs:element name="trackStatus" type="nas:TrackStatusType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if a track is new or confirmed.</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/uatAddressQualifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:AddressQualifierType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  ADSBICAO documentation ADS-B target with ICAO address enumeration  ADSBSA documentation ADS-B target with self-assigned address enumeration  BEACON documentation Fixed beacon enumeration  TISBICAO documentation TIS-B target with ICAO address enumeration  TISBTFI documentation TIS-B target with track file id enumeration  VEHICLE documentation Surface vehicle
annotation	documentation Address Qualifier from CAT033 report (if SU bit is set).
source	<xs:element name="uatAddressQualifier" type="nas:AddressQualifierType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Address Qualifier from CAT033 report (if SU bit is set).</xs:documentation>   </xs:annotation> </xs:element>

element AsdexProvenanceType/uatLinkVersion

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation Universal Access Transceiver (UAT) link version.
source	<xs:element name="uatLinkVersion" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Universal Access Transceiver (UAT) link version.</xs:documentation>   </xs:annotation> </xs:element>
