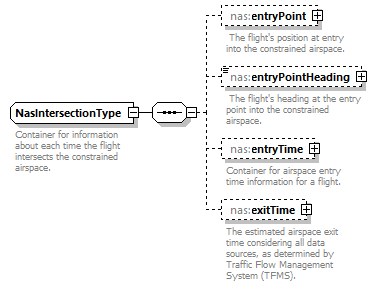

complexType NasIntersectionType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:entryPoint nas:entryPointHeading nas:entryTime nas:exitTime
used by	element  NasConstrainedAirspaceType/intersection
annotation	documentation Container for information about each time the flight intersects the constrained airspace.
source	<xs:complexType name="NasIntersectionType">   <xs:annotation>     <xs:documentation>Container for information about each time the flight intersects the constrained airspace.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="entryPoint" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation> The flight's position at entry into the constrained airspace.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="entryPointHeading" type="fb:BearingType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation> The flight's heading at the entry point into the constrained airspace.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="entryTime" type="nas:AirspaceEntryTimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Container for airspace entry time information for a flight.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="exitTime" type="nas:AirspaceExitTimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The estimated airspace exit time considering all data sources, as determined by Traffic Flow Management System (TFMS).</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

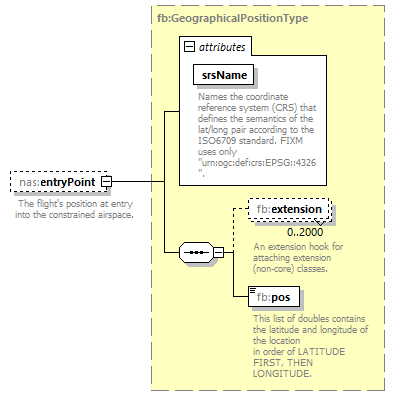

element NasIntersectionType/entryPoint

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:GeographicalPositionType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:extension fb:pos
attributes	Name   Type   Use   Default   Fixed   Annotation srsName   xs:string   required      urn:ogc:def:crs:EPSG::4326   documentation Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
annotation	documentation The flight's position at entry into the constrained airspace.
source	<xs:element name="entryPoint" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> The flight's position at entry into the constrained airspace.</xs:documentation>   </xs:annotation> </xs:element>

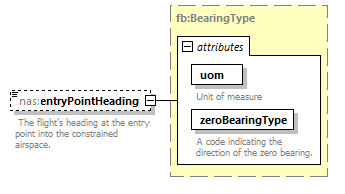

element NasIntersectionType/entryPointHeading

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:BearingType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  360
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomAngleType   required         documentation Unit of measure zeroBearingType   fb:ZeroBearingTypeType   required         documentation A code indicating the direction of the zero bearing.
annotation	documentation The flight's heading at the entry point into the constrained airspace.
source	<xs:element name="entryPointHeading" type="fb:BearingType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> The flight's heading at the entry point into the constrained airspace.</xs:documentation>   </xs:annotation> </xs:element>

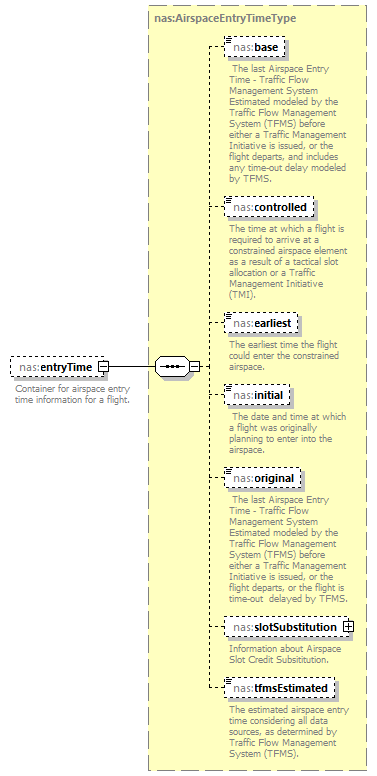

element NasIntersectionType/entryTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:AirspaceEntryTimeType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:base nas:controlled nas:earliest nas:initial nas:original nas:slotSubstitution nas:tfmsEstimated
annotation	documentation Container for airspace entry time information for a flight.
source	<xs:element name="entryTime" type="nas:AirspaceEntryTimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Container for airspace entry time information for a flight.</xs:documentation>   </xs:annotation> </xs:element>

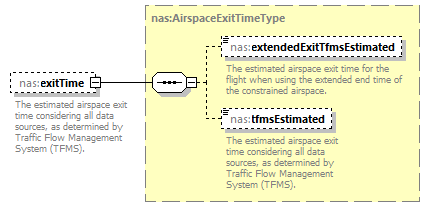

element NasIntersectionType/exitTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:AirspaceExitTimeType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	nas:extendedExitTfmsEstimated nas:tfmsEstimated
annotation	documentation The estimated airspace exit time considering all data sources, as determined by Traffic Flow Management System (TFMS).
source	<xs:element name="exitTime" type="nas:AirspaceExitTimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The estimated airspace exit time considering all data sources, as determined by Traffic Flow Management System (TFMS).</xs:documentation>   </xs:annotation> </xs:element>
