complexType NasConstrainedAirspaceType

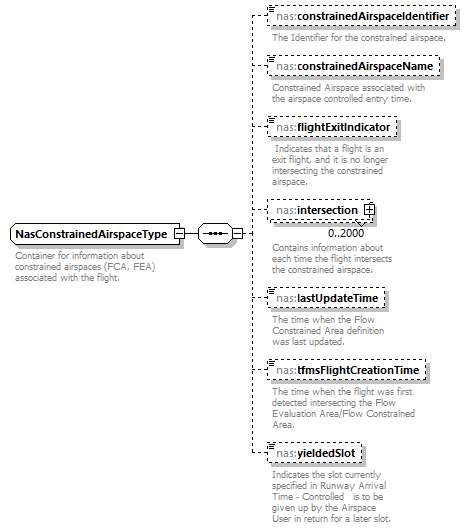

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:constrainedAirspaceIdentifier nas:constrainedAirspaceName nas:flightExitIndicator nas:intersection nas:lastUpdateTime nas:tfmsFlightCreationTime nas:yieldedSlot
used by	element  NasTrafficManagementInitiativeType/constrainedAirspace
annotation	documentation Container for information about constrained airspaces (FCA, FEA) associated with the flight.
source	<xs:complexType name="NasConstrainedAirspaceType">   <xs:annotation>     <xs:documentation>Container for information about constrained airspaces (FCA, FEA) associated with the flight.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="constrainedAirspaceIdentifier" type="fb:TextNameType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The Identifier for the constrained airspace.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="constrainedAirspaceName" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Constrained Airspace associated with the airspace controlled entry time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="flightExitIndicator" type="nas:FlightExitIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation> Indicates that a flight is an exit flight, and it is no longer intersecting the constrained airspace.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="intersection" type="nas:NasIntersectionType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>Contains information about each time the flight intersects the constrained airspace.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="lastUpdateTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The time when the Flow Constrained Area definition was last updated.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="tfmsFlightCreationTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The time when the flight was first detected intersecting the Flow Evaluation Area/Flow Constrained Area.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="yieldedSlot" type="nas:SlotYieldedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates the slot currently specified in Runway Arrival Time - Controlled   is to be given up by the Airspace User in return for a later slot.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasConstrainedAirspaceType/constrainedAirspaceIdentifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TextNameType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  60 pattern  ([A-Z]|[0-9]|[, !"&#$%'\(\)\*\+\-\./:;<=>\?@\[\\\]\^_\|\{\}])*
annotation	documentation The Identifier for the constrained airspace.
source	<xs:element name="constrainedAirspaceIdentifier" type="fb:TextNameType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The Identifier for the constrained airspace.</xs:documentation>   </xs:annotation> </xs:element>

element NasConstrainedAirspaceType/constrainedAirspaceName

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Constrained Airspace associated with the airspace controlled entry time.
source	<xs:element name="constrainedAirspaceName" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Constrained Airspace associated with the airspace controlled entry time.</xs:documentation>   </xs:annotation> </xs:element>

element NasConstrainedAirspaceType/flightExitIndicator

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:FlightExitIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  FLIGHT_EXIT documentation Indicates that the flight exited the constrained airspace.
annotation	documentation Indicates that a flight is an exit flight, and it is no longer intersecting the constrained airspace.
source	<xs:element name="flightExitIndicator" type="nas:FlightExitIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> Indicates that a flight is an exit flight, and it is no longer intersecting the constrained airspace.</xs:documentation>   </xs:annotation> </xs:element>

element NasConstrainedAirspaceType/intersection

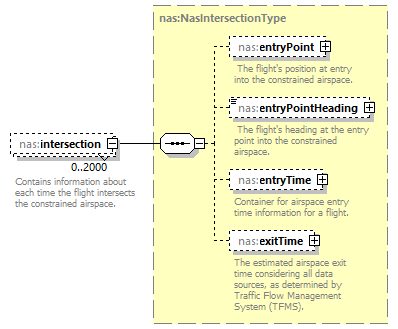

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasIntersectionType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
children	nas:entryPoint nas:entryPointHeading nas:entryTime nas:exitTime
annotation	documentation Contains information about each time the flight intersects the constrained airspace.
source	<xs:element name="intersection" type="nas:NasIntersectionType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>Contains information about each time the flight intersects the constrained airspace.</xs:documentation>   </xs:annotation> </xs:element>

element NasConstrainedAirspaceType/lastUpdateTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation The time when the Flow Constrained Area definition was last updated.
source	<xs:element name="lastUpdateTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The time when the Flow Constrained Area definition was last updated.</xs:documentation>   </xs:annotation> </xs:element>

element NasConstrainedAirspaceType/tfmsFlightCreationTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation The time when the flight was first detected intersecting the Flow Evaluation Area/Flow Constrained Area.
source	<xs:element name="tfmsFlightCreationTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The time when the flight was first detected intersecting the Flow Evaluation Area/Flow Constrained Area.</xs:documentation>   </xs:annotation> </xs:element>

element NasConstrainedAirspaceType/yieldedSlot

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:SlotYieldedIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  SLOT_YIELDED documentation Indicates the slot currently specified in "Runway Arrival Time - Controlled" is to be given up by the Airspace User in return for a later slot.
annotation	documentation Indicates the slot currently specified in Runway Arrival Time - Controlled   is to be given up by the Airspace User in return for a later slot.
source	<xs:element name="yieldedSlot" type="nas:SlotYieldedIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates the slot currently specified in Runway Arrival Time - Controlled   is to be given up by the Airspace User in return for a later slot.</xs:documentation>   </xs:annotation> </xs:element>
