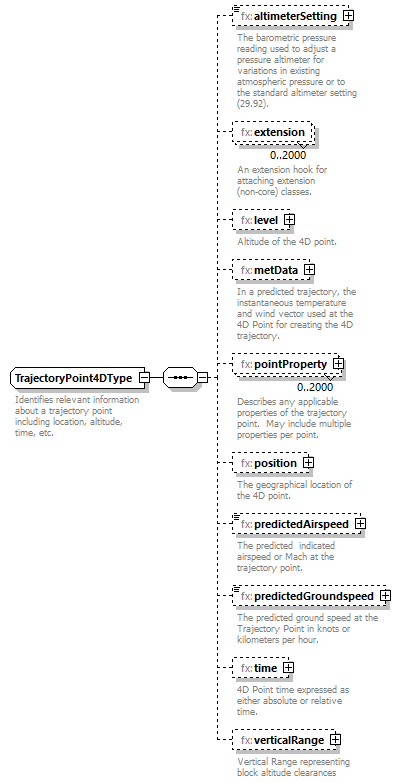

complexType TrajectoryPoint4DType
diagram BasicMessage_diagrams/BasicMessage_p497.png
namespace http://www.fixm.aero/flight/4.2
children fx:altimeterSetting fx:extension fx:level fx:metData fx:pointProperty fx:position fx:predictedAirspeed fx:predictedGroundspeed fx:time fx:verticalRange
used by
element RouteTrajectoryElementType/point4D
annotation
documentation
Identifies relevant information about a trajectory point including location, altitude, time, etc.
source <xs:complexType name="TrajectoryPoint4DType">
  <xs:annotation>
    <xs:documentation>Identifies relevant information about a trajectory point including location, altitude, time, etc.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="altimeterSetting" type="fb:PressureType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The barometric pressure reading used to adjust a pressure altimeter for variations in existing atmospheric pressure or to the standard altimeter setting (29.92).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="extension" type="fb:TrajectoryPoint4DExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">
      <xs:annotation>
        <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="level" type="fb:FlightLevelOrAltitudeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Altitude of the 4D point.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="metData" type="fx:MeteorologicalDataType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>In a predicted trajectory, the instantaneous temperature and wind vector used at the 4D Point for creating the 4D trajectory.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pointProperty" type="fx:TrajectoryPointPropertyType" nillable="true" minOccurs="0" maxOccurs="2000">
      <xs:annotation>
        <xs:documentation>Describes any applicable properties of the trajectory point.  May include multiple properties per point.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="position" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The geographical location of the 4D point.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="predictedAirspeed" type="fb:IndicatedAirspeedType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The predicted  indicated airspeed or Mach at the trajectory point.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="predictedGroundspeed" type="fb:GroundSpeedType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The predicted ground speed at the Trajectory Point in knots or kilometers per hour.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="time" type="fx:Point4DTimeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>4D Point time expressed as either absolute or relative time.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="verticalRange" type="fb:VerticalRangeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Vertical Range representing block altitude clearances</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element TrajectoryPoint4DType/altimeterSetting
diagram BasicMessage_diagrams/BasicMessage_p498.png
namespace http://www.fixm.aero/flight/4.2
type fb:PressureType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minInclusive 0
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomPressureType  required
documentation
Unit of measure
annotation
documentation
The barometric pressure reading used to adjust a pressure altimeter for variations in existing atmospheric pressure or to the standard altimeter setting (29.92).
source <xs:element name="altimeterSetting" type="fb:PressureType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The barometric pressure reading used to adjust a pressure altimeter for variations in existing atmospheric pressure or to the standard altimeter setting (29.92).</xs:documentation>
  </xs:annotation>
</xs:element>

element TrajectoryPoint4DType/extension
diagram BasicMessage_diagrams/BasicMessage_p499.png
namespace http://www.fixm.aero/flight/4.2
type fb:TrajectoryPoint4DExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:TrajectoryPoint4DExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">
  <xs:annotation>
    <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>
  </xs:annotation>
</xs:element>

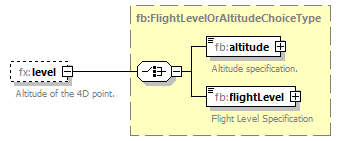

element TrajectoryPoint4DType/level
diagram BasicMessage_diagrams/BasicMessage_p500.png
namespace http://www.fixm.aero/flight/4.2
type fb:FlightLevelOrAltitudeChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:altitude fb:flightLevel
annotation
documentation
Altitude of the 4D point.
source <xs:element name="level" type="fb:FlightLevelOrAltitudeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Altitude of the 4D point.</xs:documentation>
  </xs:annotation>
</xs:element>

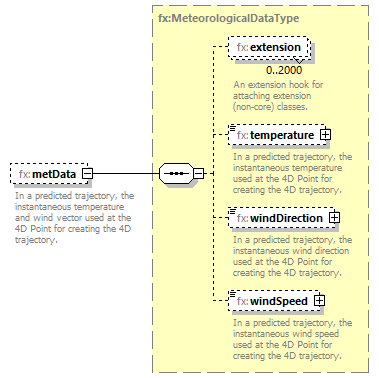

element TrajectoryPoint4DType/metData
diagram BasicMessage_diagrams/BasicMessage_p501.png
namespace http://www.fixm.aero/flight/4.2
type fx:MeteorologicalDataType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:extension fx:temperature fx:windDirection fx:windSpeed
annotation
documentation
In a predicted trajectory, the instantaneous temperature and wind vector used at the 4D Point for creating the 4D trajectory.
source <xs:element name="metData" type="fx:MeteorologicalDataType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>In a predicted trajectory, the instantaneous temperature and wind vector used at the 4D Point for creating the 4D trajectory.</xs:documentation>
  </xs:annotation>
</xs:element>

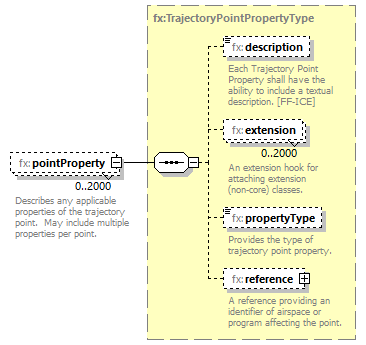

element TrajectoryPoint4DType/pointProperty
diagram BasicMessage_diagrams/BasicMessage_p502.png
namespace http://www.fixm.aero/flight/4.2
type fx:TrajectoryPointPropertyType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
children fx:description fx:extension fx:propertyType fx:reference
annotation
documentation
Describes any applicable properties of the trajectory point.  May include multiple properties per point.
source <xs:element name="pointProperty" type="fx:TrajectoryPointPropertyType" nillable="true" minOccurs="0" maxOccurs="2000">
  <xs:annotation>
    <xs:documentation>Describes any applicable properties of the trajectory point.  May include multiple properties per point.</xs:documentation>
  </xs:annotation>
</xs:element>

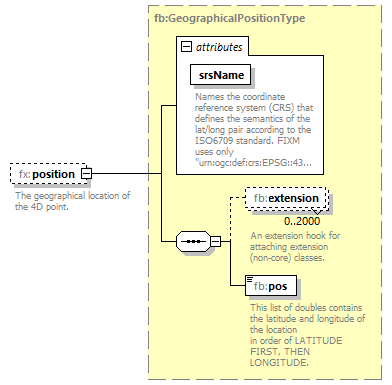

element TrajectoryPoint4DType/position
diagram BasicMessage_diagrams/BasicMessage_p503.png
namespace http://www.fixm.aero/flight/4.2
type fb:GeographicalPositionType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:extension fb:pos
attributes
Name  Type  Use  Default  Fixed  Annotation
srsName  xs:string  required    urn:ogc:def:crs:EPSG::4326
documentation
Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
annotation
documentation
The geographical location of the 4D point.
source <xs:element name="position" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The geographical location of the 4D point.</xs:documentation>
  </xs:annotation>
</xs:element>

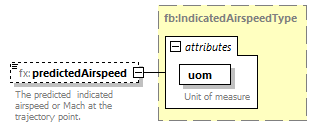

element TrajectoryPoint4DType/predictedAirspeed
diagram BasicMessage_diagrams/BasicMessage_p504.png
namespace http://www.fixm.aero/flight/4.2
type fb:IndicatedAirspeedType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minInclusive 0
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomAirspeedType  required
documentation
Unit of measure
annotation
documentation
The predicted  indicated airspeed or Mach at the trajectory point.
source <xs:element name="predictedAirspeed" type="fb:IndicatedAirspeedType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The predicted  indicated airspeed or Mach at the trajectory point.</xs:documentation>
  </xs:annotation>
</xs:element>

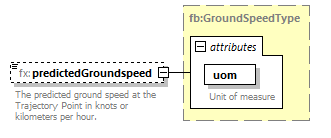

element TrajectoryPoint4DType/predictedGroundspeed
diagram BasicMessage_diagrams/BasicMessage_p505.png
namespace http://www.fixm.aero/flight/4.2
type fb:GroundSpeedType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minInclusive 0
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomGroundSpeedType  required
documentation
Unit of measure
annotation
documentation
The predicted ground speed at the Trajectory Point in knots or kilometers per hour.
source <xs:element name="predictedGroundspeed" type="fb:GroundSpeedType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The predicted ground speed at the Trajectory Point in knots or kilometers per hour.</xs:documentation>
  </xs:annotation>
</xs:element>

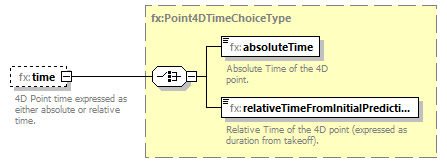

element TrajectoryPoint4DType/time
diagram BasicMessage_diagrams/BasicMessage_p506.png
namespace http://www.fixm.aero/flight/4.2
type fx:Point4DTimeChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:absoluteTime fx:relativeTimeFromInitialPredictionPoint
annotation
documentation
4D Point time expressed as either absolute or relative time.
source <xs:element name="time" type="fx:Point4DTimeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>4D Point time expressed as either absolute or relative time.</xs:documentation>
  </xs:annotation>
</xs:element>

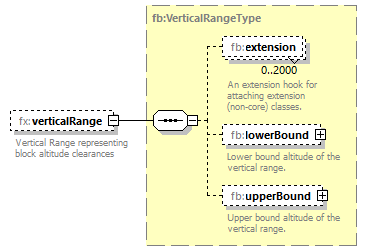

element TrajectoryPoint4DType/verticalRange
diagram BasicMessage_diagrams/BasicMessage_p507.png
namespace http://www.fixm.aero/flight/4.2
type fb:VerticalRangeType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:extension fb:lowerBound fb:upperBound
annotation
documentation
Vertical Range representing block altitude clearances
source <xs:element name="verticalRange" type="fb:VerticalRangeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Vertical Range representing block altitude clearances</xs:documentation>
  </xs:annotation>
</xs:element>
