complexType starsDataBlockType

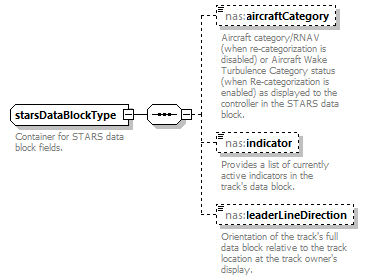

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
children	nas:aircraftCategory nas:indicator nas:leaderLineDirection
used by	element  NasFlightType/starsDataBlock
annotation	documentation Container for STARS data block fields.
source	<xs:complexType name="starsDataBlockType">   <xs:annotation>     <xs:documentation>Container for STARS data block fields.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="aircraftCategory" type="nas:StarsAircraftCategoryIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Aircraft category/RNAV (when re-categorization is disabled) or Aircraft Wake Turbulence Category status (when Re-categorization is enabled) as displayed to the controller in the STARS data block.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="indicator" type="nas:DataBlockIndicatorListType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Provides a list of currently active indicators in the track's data block.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="leaderLineDirection" type="nas:LeaderLineDirectionType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Orientation of the track's full data block relative to the track location at the track owner's display.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element starsDataBlockType/aircraftCategory

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:StarsAircraftCategoryIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [A-Z]
annotation	documentation Aircraft category/RNAV (when re-categorization is disabled) or Aircraft Wake Turbulence Category status (when Re-categorization is enabled) as displayed to the controller in the STARS data block.
source	<xs:element name="aircraftCategory" type="nas:StarsAircraftCategoryIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Aircraft category/RNAV (when re-categorization is disabled) or Aircraft Wake Turbulence Category status (when Re-categorization is enabled) as displayed to the controller in the STARS data block.</xs:documentation>   </xs:annotation> </xs:element>

element starsDataBlockType/indicator

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:DataBlockIndicatorListType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Provides a list of currently active indicators in the track's data block.
source	<xs:element name="indicator" type="nas:DataBlockIndicatorListType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Provides a list of currently active indicators in the track's data block.</xs:documentation>   </xs:annotation> </xs:element>

element starsDataBlockType/leaderLineDirection

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:LeaderLineDirectionType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  E enumeration  N enumeration  NE enumeration  NW enumeration  S enumeration  SE enumeration  SW enumeration  UNDEFINED enumeration  W
annotation	documentation Orientation of the track's full data block relative to the track location at the track owner's display.
source	<xs:element name="leaderLineDirection" type="nas:LeaderLineDirectionType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Orientation of the track's full data block relative to the track location at the track owner's display.</xs:documentation>   </xs:annotation> </xs:element>
