complexType TrackPositionType

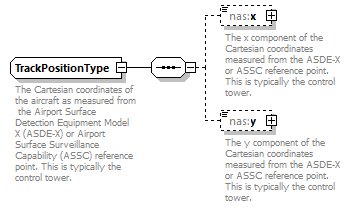

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
children	nas:x nas:y
used by	element  NasAircraftPositionType/trackPosition
annotation	documentation The Cartesian coordinates of the aircraft as measured from  the Airport Surface Detection Equipment Model X (ASDE-X) or Airport Surface Surveillance Capability (ASSC) reference point. This is typically the control tower.
source	<xs:complexType name="TrackPositionType">   <xs:annotation>     <xs:documentation>The Cartesian coordinates of the aircraft as measured from  the Airport Surface Detection Equipment Model X (ASDE-X) or Airport Surface Surveillance Capability (ASSC) reference point. This is typically the control tower.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="x" type="nas:NasDistanceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The x component of the Cartesian coordinates measured from the ASDE-X or ASSC reference point. This is typically the control tower.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="y" type="nas:NasDistanceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The y component of the Cartesian coordinates measured from the ASDE-X or ASSC reference point. This is typically the control tower.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element TrackPositionType/x

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:NasDistanceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomLengthType   required         documentation Unit of measure
annotation	documentation The x component of the Cartesian coordinates measured from the ASDE-X or ASSC reference point. This is typically the control tower.
source	<xs:element name="x" type="nas:NasDistanceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The x component of the Cartesian coordinates measured from the ASDE-X or ASSC reference point. This is typically the control tower.</xs:documentation>   </xs:annotation> </xs:element>

element TrackPositionType/y

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:NasDistanceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomLengthType   required         documentation Unit of measure
annotation	documentation The y component of the Cartesian coordinates measured from the ASDE-X or ASSC reference point. This is typically the control tower.
source	<xs:element name="y" type="nas:NasDistanceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The y component of the Cartesian coordinates measured from the ASDE-X or ASSC reference point. This is typically the control tower.</xs:documentation>   </xs:annotation> </xs:element>
