complexType TaisTrackProvenanceType

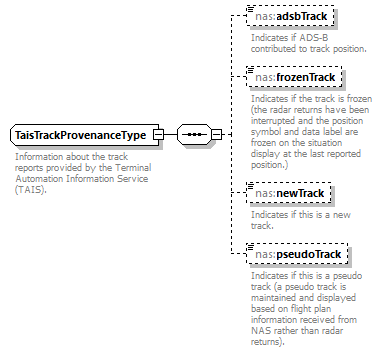

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
children	nas:adsbTrack nas:frozenTrack nas:newTrack nas:pseudoTrack
used by	element  MessageMetadataType/taisTrackProvenance
annotation	documentation Information about the track reports provided by the Terminal Automation Information Service (TAIS).
source	<xs:complexType name="TaisTrackProvenanceType">   <xs:annotation>     <xs:documentation>Information about the track reports provided by the Terminal Automation Information Service (TAIS).</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="adsbTrack" type="nas:AdsbTrackIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if ADS-B contributed to track position.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="frozenTrack" type="nas:FrozenTrackIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if the track is frozen (the radar returns have been interrupted and the position symbol and data label are frozen on the situation display at the last reported position.)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="newTrack" type="nas:NewTrackIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if this is a new track.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="pseudoTrack" type="nas:PseudoTrackIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Indicates if this is a pseudo track (a pseudo track is maintained and displayed based on flight plan information received from NAS rather than radar returns).</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element TaisTrackProvenanceType/adsbTrack

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:AdsbTrackIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  ADSB documentation ADS-B contributed to track position. enumeration  NOT_ADSB documentation ADS-B did not contribute to track position.
annotation	documentation Indicates if ADS-B contributed to track position.
source	<xs:element name="adsbTrack" type="nas:AdsbTrackIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if ADS-B contributed to track position.</xs:documentation>   </xs:annotation> </xs:element>

element TaisTrackProvenanceType/frozenTrack

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:FrozenTrackIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  FROZEN documentation The track is frozen. enumeration  NOT_FROZEN documentation The track is not frozen.
annotation	documentation Indicates if the track is frozen (the radar returns have been interrupted and the position symbol and data label are frozen on the situation display at the last reported position.)
source	<xs:element name="frozenTrack" type="nas:FrozenTrackIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if the track is frozen (the radar returns have been interrupted and the position symbol and data label are frozen on the situation display at the last reported position.)</xs:documentation>   </xs:annotation> </xs:element>

element TaisTrackProvenanceType/newTrack

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:NewTrackIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  NEW documentation This is a new track. enumeration  NOT_NEW documentation This is not a new track.
annotation	documentation Indicates if this is a new track.
source	<xs:element name="newTrack" type="nas:NewTrackIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if this is a new track.</xs:documentation>   </xs:annotation> </xs:element>

element TaisTrackProvenanceType/pseudoTrack

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:PseudoTrackIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  NOT_PSEUDO documentation This is not a pseudo track. enumeration  PSEUDO documentation This is a pseudo track.
annotation	documentation Indicates if this is a pseudo track (a pseudo track is maintained and displayed based on flight plan information received from NAS rather than radar returns).
source	<xs:element name="pseudoTrack" type="nas:PseudoTrackIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if this is a pseudo track (a pseudo track is maintained and displayed based on flight plan information received from NAS rather than radar returns).</xs:documentation>   </xs:annotation> </xs:element>
