complexType PredictedFixType

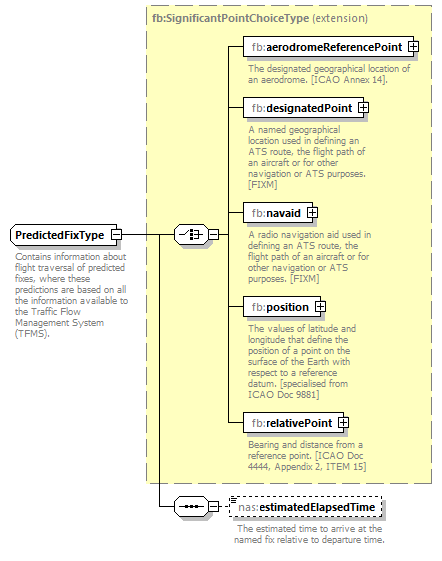

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	extension of fb:SignificantPointChoiceType
properties	base  fb:SignificantPointChoiceType
children	fb:aerodromeReferencePoint fb:designatedPoint fb:navaid fb:position fb:relativePoint nas:estimatedElapsedTime
used by	element  RouteImpactListType/predictedFix
annotation	documentation Contains information about flight traversal of predicted fixes, where these predictions are based on all the information available to the Traffic Flow Management System (TFMS).
source	<xs:complexType name="PredictedFixType">   <xs:annotation>     <xs:documentation>Contains information about flight traversal of predicted fixes, where these predictions are based on all the information available to the Traffic Flow Management System (TFMS).</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="fb:SignificantPointChoiceType">       <xs:sequence>         <xs:element name="estimatedElapsedTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation> The estimated time to arrive at the named fix relative to departure time.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element PredictedFixType/estimatedElapsedTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?P([0-9]+Y)?([0-9]+M)?([0-9]+D)?(T([0-9]+H)?([0-9]+M)?([0-9]+S)?)?
annotation	documentation The estimated time to arrive at the named fix relative to departure time.
source	<xs:element name="estimatedElapsedTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> The estimated time to arrive at the named fix relative to departure time.</xs:documentation>   </xs:annotation> </xs:element>
