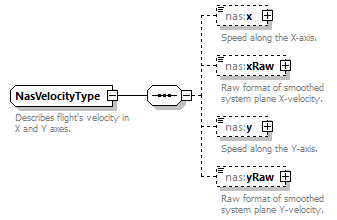

complexType NasVelocityType

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
children	nas:x nas:xRaw nas:y nas:yRaw
used by	element  NasAircraftPositionType/trackVelocity
annotation	documentation Describes flight's velocity in X and Y axes.
source	<xs:complexType name="NasVelocityType">   <xs:annotation>     <xs:documentation>Describes flight's velocity in X and Y axes.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="x" type="nas:NasIndicatedAirspeedType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Speed along the X-axis.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="xRaw" type="nas:NasIndicatedAirspeedType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Raw format of smoothed system plane X-velocity.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="y" type="nas:NasIndicatedAirspeedType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Speed along the Y-axis.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="yRaw" type="nas:NasIndicatedAirspeedType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Raw format of smoothed system plane Y-velocity.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasVelocityType/x

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:NasIndicatedAirspeedType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomAirspeedType   required         documentation Unit of measure
annotation	documentation Speed along the X-axis.
source	<xs:element name="x" type="nas:NasIndicatedAirspeedType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Speed along the X-axis.</xs:documentation>   </xs:annotation> </xs:element>

element NasVelocityType/xRaw

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:NasIndicatedAirspeedType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomAirspeedType   required         documentation Unit of measure
annotation	documentation Raw format of smoothed system plane X-velocity.
source	<xs:element name="xRaw" type="nas:NasIndicatedAirspeedType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Raw format of smoothed system plane X-velocity.</xs:documentation>   </xs:annotation> </xs:element>

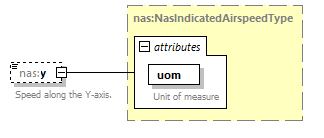

element NasVelocityType/y

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:NasIndicatedAirspeedType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomAirspeedType   required         documentation Unit of measure
annotation	documentation Speed along the Y-axis.
source	<xs:element name="y" type="nas:NasIndicatedAirspeedType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Speed along the Y-axis.</xs:documentation>   </xs:annotation> </xs:element>

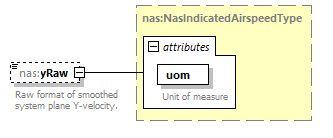

element NasVelocityType/yRaw

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	nas:NasIndicatedAirspeedType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomAirspeedType   required         documentation Unit of measure
annotation	documentation Raw format of smoothed system plane Y-velocity.
source	<xs:element name="yRaw" type="nas:NasIndicatedAirspeedType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Raw format of smoothed system plane Y-velocity.</xs:documentation>   </xs:annotation> </xs:element>
