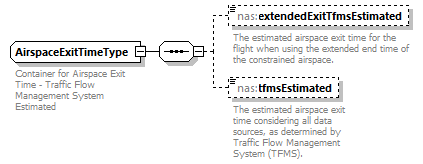

complexType AirspaceExitTimeType

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
children	nas:extendedExitTfmsEstimated nas:tfmsEstimated
used by	element  NasIntersectionType/exitTime
annotation	documentation Container for Airspace Exit Time - Traffic Flow Management System Estimated
source	<xs:complexType name="AirspaceExitTimeType">   <xs:annotation>     <xs:documentation>Container for Airspace Exit Time - Traffic Flow Management System Estimated</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="extendedExitTfmsEstimated" type="fb:DateTimeUtcType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The estimated airspace exit time for the flight when using the extended end time of the constrained airspace.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="tfmsEstimated" type="fb:DateTimeUtcType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The estimated airspace exit time considering all data sources, as determined by Traffic Flow Management System (TFMS).</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element AirspaceExitTimeType/extendedExitTfmsEstimated

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:DateTimeUtcType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T((([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9])|24:00:00)Z
annotation	documentation The estimated airspace exit time for the flight when using the extended end time of the constrained airspace.
source	<xs:element name="extendedExitTfmsEstimated" type="fb:DateTimeUtcType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The estimated airspace exit time for the flight when using the extended end time of the constrained airspace.</xs:documentation>   </xs:annotation> </xs:element>

element AirspaceExitTimeType/tfmsEstimated

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:DateTimeUtcType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T((([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9])|24:00:00)Z
annotation	documentation The estimated airspace exit time considering all data sources, as determined by Traffic Flow Management System (TFMS).
source	<xs:element name="tfmsEstimated" type="fb:DateTimeUtcType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The estimated airspace exit time considering all data sources, as determined by Traffic Flow Management System (TFMS).</xs:documentation>   </xs:annotation> </xs:element>
