complexType AccuracyOfPredictedTimesType

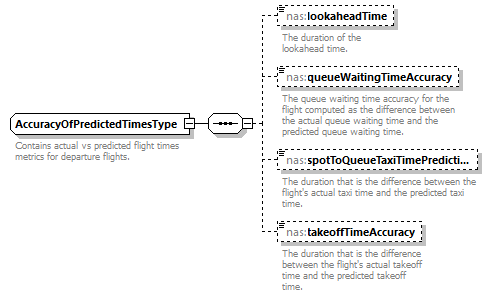

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
children	nas:lookaheadTime nas:queueWaitingTimeAccuracy nas:spotToQueueTaxiTimePredictionAccuracy nas:takeoffTimeAccuracy
used by	element  ActualVersusPredictedFlightTimesType/accuracyOfPredictedTimes
annotation	documentation Contains actual vs predicted flight times metrics for departure flights.
source	<xs:complexType name="AccuracyOfPredictedTimesType">   <xs:annotation>     <xs:documentation>Contains actual vs predicted flight times metrics for departure flights.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="lookaheadTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The duration of the lookahead time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="queueWaitingTimeAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The queue waiting time accuracy for the flight computed as the difference between the actual queue waiting time and the predicted queue waiting time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="spotToQueueTaxiTimePredictionAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The duration that is the difference between the flight's actual taxi time and the predicted taxi time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="takeoffTimeAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The duration that is the difference between the flight's actual takeoff time and the predicted takeoff time.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element AccuracyOfPredictedTimesType/lookaheadTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?P([0-9]+Y)?([0-9]+M)?([0-9]+D)?(T([0-9]+H)?([0-9]+M)?([0-9]+S)?)?
annotation	documentation The duration of the lookahead time.
source	<xs:element name="lookaheadTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The duration of the lookahead time.</xs:documentation>   </xs:annotation> </xs:element>

element AccuracyOfPredictedTimesType/queueWaitingTimeAccuracy

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?P([0-9]+Y)?([0-9]+M)?([0-9]+D)?(T([0-9]+H)?([0-9]+M)?([0-9]+S)?)?
annotation	documentation The queue waiting time accuracy for the flight computed as the difference between the actual queue waiting time and the predicted queue waiting time.
source	<xs:element name="queueWaitingTimeAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The queue waiting time accuracy for the flight computed as the difference between the actual queue waiting time and the predicted queue waiting time.</xs:documentation>   </xs:annotation> </xs:element>

element AccuracyOfPredictedTimesType/spotToQueueTaxiTimePredictionAccuracy

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?P([0-9]+Y)?([0-9]+M)?([0-9]+D)?(T([0-9]+H)?([0-9]+M)?([0-9]+S)?)?
annotation	documentation The duration that is the difference between the flight's actual taxi time and the predicted taxi time.
source	<xs:element name="spotToQueueTaxiTimePredictionAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The duration that is the difference between the flight's actual taxi time and the predicted taxi time.</xs:documentation>   </xs:annotation> </xs:element>

element AccuracyOfPredictedTimesType/takeoffTimeAccuracy

diagram
namespace	http://www.fixm.aero/ext/nas/4.4
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?P([0-9]+Y)?([0-9]+M)?([0-9]+D)?(T([0-9]+H)?([0-9]+M)?([0-9]+S)?)?
annotation	documentation The duration that is the difference between the flight's actual takeoff time and the predicted takeoff time.
source	<xs:element name="takeoffTimeAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The duration that is the difference between the flight's actual takeoff time and the predicted takeoff time.</xs:documentation>   </xs:annotation> </xs:element>
