complexType PreImplicitSubstitutionType

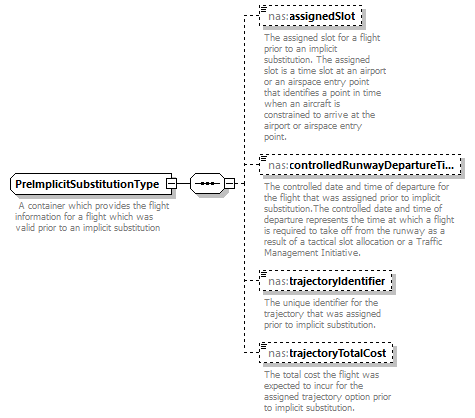

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:assignedSlot nas:controlledRunwayDepartureTime nas:trajectoryIdentifier nas:trajectoryTotalCost
used by	element  CollaborativeTrajectoryOptionsProgramType/preImplicitSubstitution
annotation	documentation A container which provides the flight information for a flight which was valid prior to an implicit substitution
source	<xs:complexType name="PreImplicitSubstitutionType">   <xs:annotation>     <xs:documentation> A container which provides the flight information for a flight which was valid prior to an implicit substitution</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="assignedSlot" type="nas:SlotAssignmentType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The assigned slot for a flight prior to an implicit substitution. The assigned slot is a time slot at an airport or an airspace entry point that identifies a point in time when an aircraft is constrained to arrive at the airport or airspace entry point.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="controlledRunwayDepartureTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The controlled date and time of departure for the flight that was assigned prior to implicit substitution.The controlled date and time of departure represents the time at which a flight is required to take off from the runway as a result of a tactical slot allocation or a Traffic Management Initiative.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="trajectoryIdentifier" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The unique identifier for the trajectory that was assigned prior to implicit substitution.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="trajectoryTotalCost" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The total cost the flight was expected to incur for the assigned trajectory option prior to implicit substitution. </xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element PreImplicitSubstitutionType/assignedSlot

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:SlotAssignmentType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096 pattern  [a-zA-Z0-9]{3,6}[.]{1}[0-9]{12}[a-zA-Z]{1}|NOSLOT|PURGED|REMOVED|UNUSED|UNASSIGNED|UNAVAILABLE|PURGED_PLANNED|PURGED_ACTIVE_COMPLETED|ALL PROGRAMS
annotation	documentation The assigned slot for a flight prior to an implicit substitution. The assigned slot is a time slot at an airport or an airspace entry point that identifies a point in time when an aircraft is constrained to arrive at the airport or airspace entry point.
source	<xs:element name="assignedSlot" type="nas:SlotAssignmentType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The assigned slot for a flight prior to an implicit substitution. The assigned slot is a time slot at an airport or an airspace entry point that identifies a point in time when an aircraft is constrained to arrive at the airport or airspace entry point.</xs:documentation>   </xs:annotation> </xs:element>

element PreImplicitSubstitutionType/controlledRunwayDepartureTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation The controlled date and time of departure for the flight that was assigned prior to implicit substitution.The controlled date and time of departure represents the time at which a flight is required to take off from the runway as a result of a tactical slot allocation or a Traffic Management Initiative.
source	<xs:element name="controlledRunwayDepartureTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The controlled date and time of departure for the flight that was assigned prior to implicit substitution.The controlled date and time of departure represents the time at which a flight is required to take off from the runway as a result of a tactical slot allocation or a Traffic Management Initiative.</xs:documentation>   </xs:annotation> </xs:element>

element PreImplicitSubstitutionType/trajectoryIdentifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation The unique identifier for the trajectory that was assigned prior to implicit substitution.
source	<xs:element name="trajectoryIdentifier" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The unique identifier for the trajectory that was assigned prior to implicit substitution.</xs:documentation>   </xs:annotation> </xs:element>

element PreImplicitSubstitutionType/trajectoryTotalCost

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The total cost the flight was expected to incur for the assigned trajectory option prior to implicit substitution.
source	<xs:element name="trajectoryTotalCost" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The total cost the flight was expected to incur for the assigned trajectory option prior to implicit substitution. </xs:documentation>   </xs:annotation> </xs:element>
