complexType NasVerticalRateType

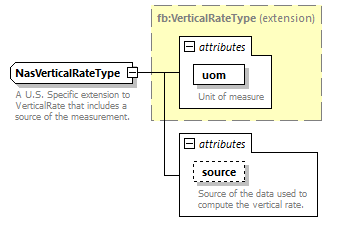

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	extension of fb:VerticalRateType
properties	base  fb:VerticalRateType
used by	element  NasAircraftPositionType/verticalRate
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomVerticalRateType   required         documentation Unit of measure source   nas:VerticalRateSourceType   optional         documentation Source of the data used to compute the vertical rate.
annotation	documentation A U.S. Specific extension to VerticalRate that includes a source of the measurement.
source	<xs:complexType name="NasVerticalRateType">   <xs:annotation>     <xs:documentation>A U.S. Specific extension to VerticalRate that includes a source of the measurement.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="fb:VerticalRateType">       <xs:attribute name="source" type="nas:VerticalRateSourceType" use="optional">         <xs:annotation>           <xs:documentation>Source of the data used to compute the vertical rate.</xs:documentation>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute NasVerticalRateType/@source

type	nas:VerticalRateSourceType
properties	use  optional
facets	Kind  Value  Annotation enumeration  BAROMETRIC documentation Barometric enumeration  GEOMETRIC documentation Geometric
annotation	documentation Source of the data used to compute the vertical rate.
source	<xs:attribute name="source" type="nas:VerticalRateSourceType" use="optional">   <xs:annotation>     <xs:documentation>Source of the data used to compute the vertical rate.</xs:documentation>   </xs:annotation> </xs:attribute>
