complexType NasRouteAmendmentType

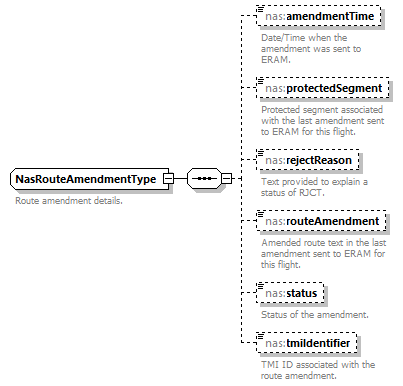

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:amendmentTime nas:protectedSegment nas:rejectReason nas:routeAmendment nas:status nas:tmiIdentifier
used by	elements  NasEramRouteAmendmentType/amendment CollaborativeTrajectoryOptionsProgramType/lastRouteAmendment
annotation	documentation Route amendment details.
source	<xs:complexType name="NasRouteAmendmentType">   <xs:annotation>     <xs:documentation>Route amendment details.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="amendmentTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Date/Time when the amendment was sent to ERAM.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="protectedSegment" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Protected segment associated with the last amendment sent to ERAM for this flight.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="rejectReason" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Text provided to explain a status of RJCT.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="routeAmendment" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Amended route text in the last amendment sent to ERAM for this flight.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="status" type="nas:AmendmentStatusType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Status of the amendment.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="tmiIdentifier" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>TMI ID associated with the route amendment.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasRouteAmendmentType/amendmentTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation Date/Time when the amendment was sent to ERAM.
source	<xs:element name="amendmentTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Date/Time when the amendment was sent to ERAM.</xs:documentation>   </xs:annotation> </xs:element>

element NasRouteAmendmentType/protectedSegment

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Protected segment associated with the last amendment sent to ERAM for this flight.
source	<xs:element name="protectedSegment" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Protected segment associated with the last amendment sent to ERAM for this flight.</xs:documentation>   </xs:annotation> </xs:element>

element NasRouteAmendmentType/rejectReason

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Text provided to explain a status of RJCT.
source	<xs:element name="rejectReason" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Text provided to explain a status of RJCT.</xs:documentation>   </xs:annotation> </xs:element>

element NasRouteAmendmentType/routeAmendment

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Amended route text in the last amendment sent to ERAM for this flight.
source	<xs:element name="routeAmendment" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Amended route text in the last amendment sent to ERAM for this flight.</xs:documentation>   </xs:annotation> </xs:element>

element NasRouteAmendmentType/status

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:AmendmentStatusType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  SENT documentation Amendment successfully sent to ERAM. enumeration  HELD documentation Amendment held enumeration  TOUT documentation Amendment timed out enumeration  PEND documentation Amendment pending enumeration  APLD documentation Amendment applied enumeration  AMOD documentation Amendment applied with modifiers enumeration  DROP documentation Amendment dropped enumeration  RJCT documentation Amendment rejected
annotation	documentation Status of the amendment.
source	<xs:element name="status" type="nas:AmendmentStatusType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Status of the amendment.</xs:documentation>   </xs:annotation> </xs:element>

element NasRouteAmendmentType/tmiIdentifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation TMI ID associated with the route amendment.
source	<xs:element name="tmiIdentifier" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>TMI ID associated with the route amendment.</xs:documentation>   </xs:annotation> </xs:element>
