complexType NasRerouteType

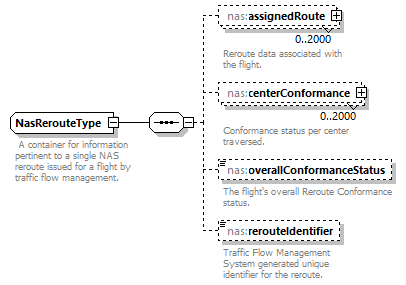

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:assignedRoute nas:centerConformance nas:overallConformanceStatus nas:rerouteIdentifier
used by	element  NasTrafficManagementInitiativeType/reroute
annotation	documentation A container for information pertinent to a single NAS reroute issued for a flight by traffic flow management.
source	<xs:complexType name="NasRerouteType">   <xs:annotation>     <xs:documentation> A container for information pertinent to a single NAS reroute issued for a flight by traffic flow management.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="assignedRoute" type="nas:NasAssignedRouteType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>Reroute data associated with the flight.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="centerConformance" type="nas:NasCenterConformanceType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>Conformance status per center traversed.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="overallConformanceStatus" type="nas:NasConformanceStatusType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The flight's overall Reroute Conformance status.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="rerouteIdentifier" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Traffic Flow Management System generated unique identifier for the reroute.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasRerouteType/assignedRoute

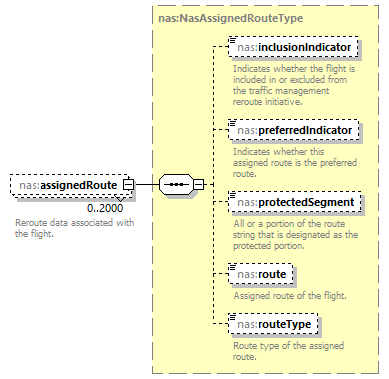

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasAssignedRouteType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
children	nas:inclusionIndicator nas:preferredIndicator nas:protectedSegment nas:route nas:routeType
annotation	documentation Reroute data associated with the flight.
source	<xs:element name="assignedRoute" type="nas:NasAssignedRouteType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>Reroute data associated with the flight.</xs:documentation>   </xs:annotation> </xs:element>

element NasRerouteType/centerConformance

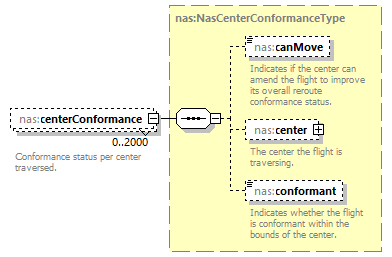

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasCenterConformanceType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
children	nas:canMove nas:center nas:conformant
annotation	documentation Conformance status per center traversed.
source	<xs:element name="centerConformance" type="nas:NasCenterConformanceType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>Conformance status per center traversed.</xs:documentation>   </xs:annotation> </xs:element>

element NasRerouteType/overallConformanceStatus

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasConformanceStatusType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  C documentation Conformant enumeration  NC documentation Nonconformant enumeration  UNKN documentation Unknown enumeration  EXC documentation Excluded enumeration  OK documentation Okay enumeration  NC/OK documentation Nonconformant/Okay
annotation	documentation The flight's overall Reroute Conformance status.
source	<xs:element name="overallConformanceStatus" type="nas:NasConformanceStatusType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The flight's overall Reroute Conformance status.</xs:documentation>   </xs:annotation> </xs:element>

element NasRerouteType/rerouteIdentifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Traffic Flow Management System generated unique identifier for the reroute.
source	<xs:element name="rerouteIdentifier" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Traffic Flow Management System generated unique identifier for the reroute.</xs:documentation>   </xs:annotation> </xs:element>
