complexType NasMessageType

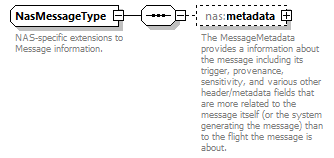

diagram Nas_diagrams/Nas_p340.png
namespace http://www.fixm.aero/ext/nas/4.3
type extension of msg:MessageExtensionType
properties
base msg:MessageExtensionType
children nas:metadata
annotation
documentation
NAS-specific extensions to Message information.
source <xs:complexType name="NasMessageType">

<xs:annotation>

<xs:documentation>NAS-specific extensions to Message information.</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="msg:MessageExtensionType">

<xs:sequence>

<xs:element name="metadata" type="nas:MessageMetadataType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The MessageMetadata provides a information about the message including its trigger, provenance, sensitivity, and various other header/metadata fields that are more related to the message itself (or the system generating the message) than to the flight the message is about.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element NasMessageType/metadata

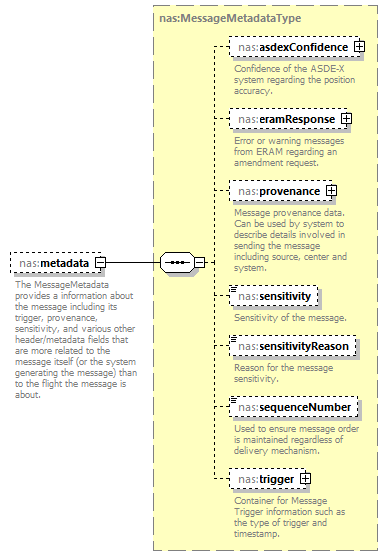

diagram Nas_diagrams/Nas_p341.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:MessageMetadataType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:asdexConfidence nas:eramResponse nas:provenance nas:sensitivity nas:sensitivityReason nas:sequenceNumber nas:trigger
annotation
documentation
The MessageMetadata provides a information about the message including its trigger, provenance, sensitivity, and various other header/metadata fields that are more related to the message itself (or the system generating the message) than to the flight the message is about.
source <xs:element name="metadata" type="nas:MessageMetadataType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The MessageMetadata provides a information about the message including its trigger, provenance, sensitivity, and various other header/metadata fields that are more related to the message itself (or the system generating the message) than to the flight the message is about.</xs:documentation>

</xs:annotation>
</xs:element>
