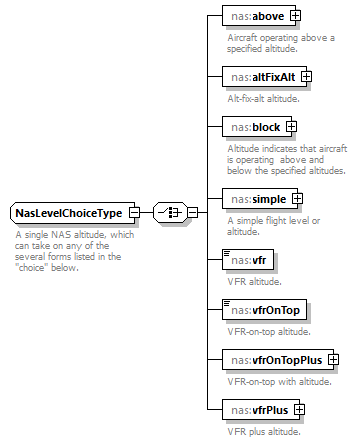

complexType NasLevelChoiceType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:above nas:altFixAlt nas:block nas:simple nas:vfr nas:vfrOnTop nas:vfrOnTopPlus nas:vfrPlus
used by	elements  NasRouteInformationType/assignedAltitude NasRouteInformationType/requestedAltitude
annotation	documentation A single NAS altitude, which can take on any of the several forms listed in the "choice" below.
source	<xs:complexType name="NasLevelChoiceType">   <xs:annotation>     <xs:documentation>A single NAS altitude, which can take on any of the several forms listed in the "choice" below.             </xs:documentation>   </xs:annotation>   <xs:choice>     <xs:element name="above" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>Aircraft operating above a specified altitude.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="altFixAlt" type="nas:AltFixAltAltitudeType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>Alt-fix-alt altitude.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="block" type="nas:BlockAltitudeType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>Altitude indicates that aircraft is operating  above and below the specified altitudes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="simple" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>A simple flight level or altitude.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="vfr" type="nas:VfrType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>VFR altitude.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="vfrOnTop" type="nas:VfrOnTopType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>VFR-on-top altitude.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="vfrOnTopPlus" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>VFR-on-top with altitude.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="vfrPlus" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>VFR plus altitude.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:choice> </xs:complexType>

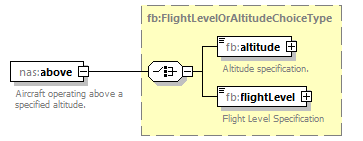

element NasLevelChoiceType/above

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:FlightLevelOrAltitudeChoiceType
properties	content  complex
children	fb:altitude fb:flightLevel
annotation	documentation Aircraft operating above a specified altitude.
source	<xs:element name="above" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>Aircraft operating above a specified altitude.</xs:documentation>   </xs:annotation> </xs:element>

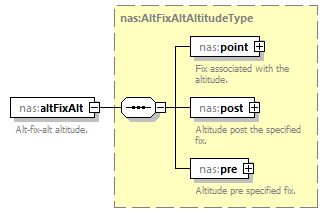

element NasLevelChoiceType/altFixAlt

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:AltFixAltAltitudeType
properties	content  complex
children	nas:point nas:post nas:pre
annotation	documentation Alt-fix-alt altitude.
source	<xs:element name="altFixAlt" type="nas:AltFixAltAltitudeType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>Alt-fix-alt altitude.</xs:documentation>   </xs:annotation> </xs:element>

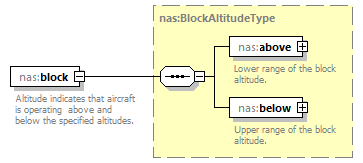

element NasLevelChoiceType/block

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:BlockAltitudeType
properties	content  complex
children	nas:above nas:below
annotation	documentation Altitude indicates that aircraft is operating  above and below the specified altitudes.
source	<xs:element name="block" type="nas:BlockAltitudeType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>Altitude indicates that aircraft is operating  above and below the specified altitudes.</xs:documentation>   </xs:annotation> </xs:element>

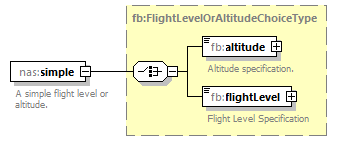

element NasLevelChoiceType/simple

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:FlightLevelOrAltitudeChoiceType
properties	content  complex
children	fb:altitude fb:flightLevel
annotation	documentation A simple flight level or altitude.
source	<xs:element name="simple" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>A simple flight level or altitude.</xs:documentation>   </xs:annotation> </xs:element>

element NasLevelChoiceType/vfr

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:VfrType
properties	content  simple
facets	Kind  Value  Annotation enumeration  VFR
annotation	documentation VFR altitude.
source	<xs:element name="vfr" type="nas:VfrType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>VFR altitude.</xs:documentation>   </xs:annotation> </xs:element>

element NasLevelChoiceType/vfrOnTop

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:VfrOnTopType
properties	content  simple
facets	Kind  Value  Annotation enumeration  VFR_ON_TOP
annotation	documentation VFR-on-top altitude.
source	<xs:element name="vfrOnTop" type="nas:VfrOnTopType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>VFR-on-top altitude.</xs:documentation>   </xs:annotation> </xs:element>

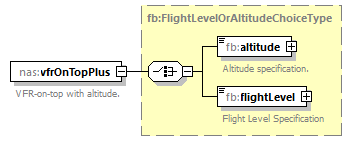

element NasLevelChoiceType/vfrOnTopPlus

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:FlightLevelOrAltitudeChoiceType
properties	content  complex
children	fb:altitude fb:flightLevel
annotation	documentation VFR-on-top with altitude.
source	<xs:element name="vfrOnTopPlus" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>VFR-on-top with altitude.</xs:documentation>   </xs:annotation> </xs:element>

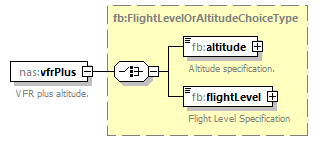

element NasLevelChoiceType/vfrPlus

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:FlightLevelOrAltitudeChoiceType
properties	content  complex
children	fb:altitude fb:flightLevel
annotation	documentation VFR plus altitude.
source	<xs:element name="vfrPlus" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>VFR plus altitude.</xs:documentation>   </xs:annotation> </xs:element>
