complexType NasIntersectedAirspaceType

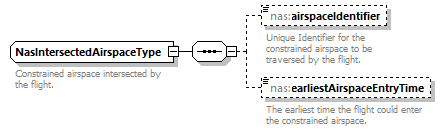

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:airspaceIdentifier nas:earliestAirspaceEntryTime
used by	elements  FlowProgramInformationType/intersectedAirspace NasTrajectoryOptionType/intersectedAirspace
annotation	documentation Constrained airspace intersected by the flight.
source	<xs:complexType name="NasIntersectedAirspaceType">   <xs:annotation>     <xs:documentation>Constrained airspace intersected by the flight.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="airspaceIdentifier" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Unique Identifier for the constrained airspace to be traversed by the flight.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="earliestAirspaceEntryTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The earliest time the flight could enter the constrained airspace.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasIntersectedAirspaceType/airspaceIdentifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Unique Identifier for the constrained airspace to be traversed by the flight.
source	<xs:element name="airspaceIdentifier" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Unique Identifier for the constrained airspace to be traversed by the flight.</xs:documentation>   </xs:annotation> </xs:element>

element NasIntersectedAirspaceType/earliestAirspaceEntryTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation The earliest time the flight could enter the constrained airspace.
source	<xs:element name="earliestAirspaceEntryTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The earliest time the flight could enter the constrained airspace.</xs:documentation>   </xs:annotation> </xs:element>
