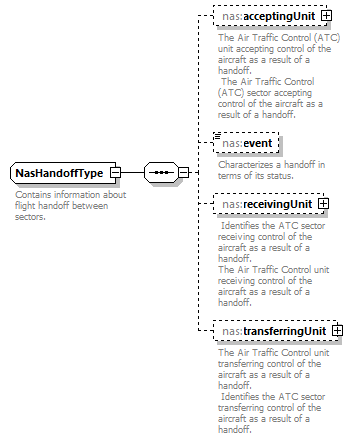

complexType NasHandoffType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:acceptingUnit nas:event nas:receivingUnit nas:transferringUnit
used by	element  NasBoundaryCrossingType/handoff
annotation	documentation Contains information about flight handoff between sectors.
source	<xs:complexType name="NasHandoffType">   <xs:annotation>     <xs:documentation>Contains information about flight handoff between sectors.          </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="acceptingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The Air Traffic Control (ATC) unit accepting control of the aircraft as a result of a handoff. The Air Traffic Control (ATC) sector accepting control of the aircraft as a result of a handoff.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="event" type="nas:NasHandoffEventType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Characterizes a handoff in terms of its status.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="receivingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation> Identifies the ATC sector receiving control of the aircraft as a result of a handoff. The Air Traffic Control unit receiving control of the aircraft as a result of a handoff.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="transferringUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The Air Traffic Control unit transferring control of the aircraft as a result of a handoff. Identifies the ATC sector transferring control of the aircraft as a result of a handoff.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

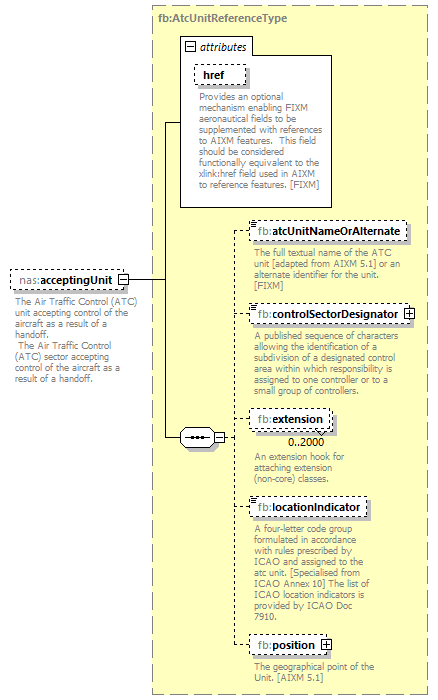

element NasHandoffType/acceptingUnit

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:AtcUnitReferenceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation The Air Traffic Control (ATC) unit accepting control of the aircraft as a result of a handoff. The Air Traffic Control (ATC) sector accepting control of the aircraft as a result of a handoff.
source	<xs:element name="acceptingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The Air Traffic Control (ATC) unit accepting control of the aircraft as a result of a handoff. The Air Traffic Control (ATC) sector accepting control of the aircraft as a result of a handoff.</xs:documentation>   </xs:annotation> </xs:element>

element NasHandoffType/event

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasHandoffEventType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  INITIATION documentation Initiation enumeration  ACCEPTANCE documentation Acceptance enumeration  RETRACTION documentation Retraction enumeration  TAKE_CONTROL documentation Take Control enumeration  UPDATE documentation Update enumeration  FAILURE documentation Failure
annotation	documentation Characterizes a handoff in terms of its status.
source	<xs:element name="event" type="nas:NasHandoffEventType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Characterizes a handoff in terms of its status.</xs:documentation>   </xs:annotation> </xs:element>

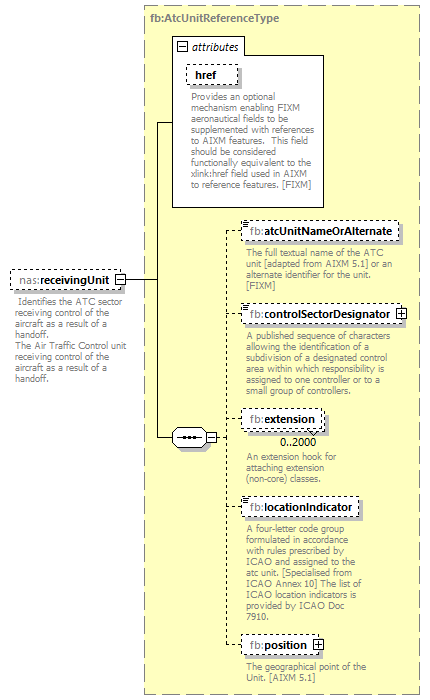

element NasHandoffType/receivingUnit

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:AtcUnitReferenceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation Identifies the ATC sector receiving control of the aircraft as a result of a handoff. The Air Traffic Control unit receiving control of the aircraft as a result of a handoff.
source	<xs:element name="receivingUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> Identifies the ATC sector receiving control of the aircraft as a result of a handoff. The Air Traffic Control unit receiving control of the aircraft as a result of a handoff.</xs:documentation>   </xs:annotation> </xs:element>

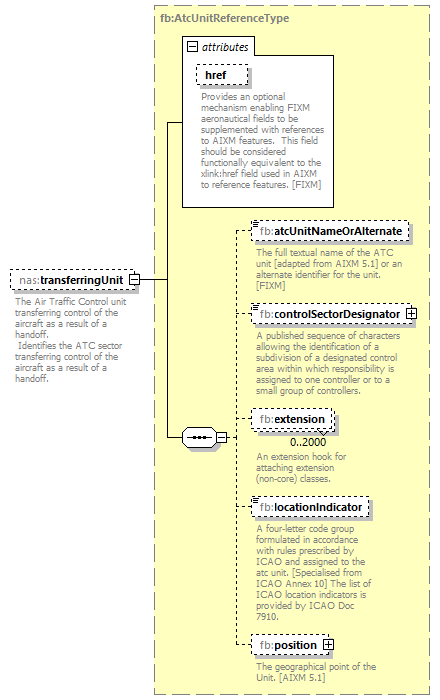

element NasHandoffType/transferringUnit

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:AtcUnitReferenceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation The Air Traffic Control unit transferring control of the aircraft as a result of a handoff. Identifies the ATC sector transferring control of the aircraft as a result of a handoff.
source	<xs:element name="transferringUnit" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The Air Traffic Control unit transferring control of the aircraft as a result of a handoff. Identifies the ATC sector transferring control of the aircraft as a result of a handoff.</xs:documentation>   </xs:annotation> </xs:element>
