complexType NasControlElementChoiceType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:aerodrome nas:constrainedAirspaceIdentifier nas:ctopIdentifier
used by	elements  NasTmiType/controlElement NasTmiType/controlProgram
annotation	documentation The name of the aerodrome (GDP), constrained airspace (AFP), or CTOP identifier (CTOP) currently controlling the flight.
source	<xs:complexType name="NasControlElementChoiceType">   <xs:annotation>     <xs:documentation>The name of the aerodrome (GDP), constrained airspace (AFP), or CTOP identifier (CTOP) currently controlling the flight.</xs:documentation>   </xs:annotation>   <xs:choice>     <xs:element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>The aerodrome controlling the flight (GDP, GS).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="constrainedAirspaceIdentifier" type="fb:TextNameType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>The identifier for the constrained airspace controlling the flight (AFP).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ctopIdentifier" type="fb:CharacterStringType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>The identifier for the CTOP controlling the flight (CTOP).</xs:documentation>       </xs:annotation>     </xs:element>   </xs:choice> </xs:complexType>

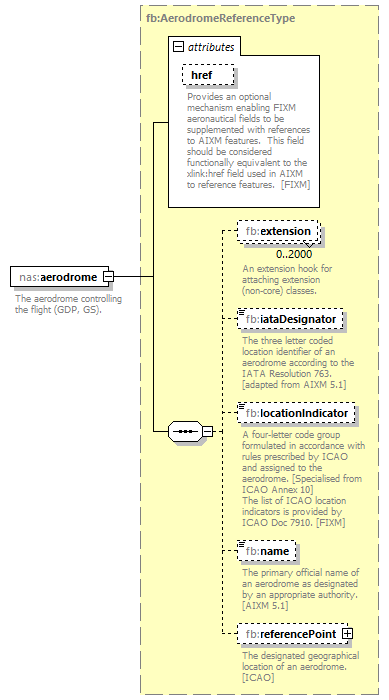

element NasControlElementChoiceType/aerodrome

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:AerodromeReferenceType
properties	content  complex
children	fb:extension fb:iataDesignator fb:locationIndicator fb:name fb:referencePoint
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features.  [FIXM]
annotation	documentation The aerodrome controlling the flight (GDP, GS).
source	<xs:element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>The aerodrome controlling the flight (GDP, GS).</xs:documentation>   </xs:annotation> </xs:element>

element NasControlElementChoiceType/constrainedAirspaceIdentifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TextNameType
properties	content  simple
facets	Kind  Value  Annotation minLength  0 maxLength  60 pattern  ([A-Z]|[0-9]|[, !"&#$%'\(\)\*\+\-\./:;<=>\?@\[\\\]\^_\|\{\}])*
annotation	documentation The identifier for the constrained airspace controlling the flight (AFP).
source	<xs:element name="constrainedAirspaceIdentifier" type="fb:TextNameType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>The identifier for the constrained airspace controlling the flight (AFP).</xs:documentation>   </xs:annotation> </xs:element>

element NasControlElementChoiceType/ctopIdentifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	content  simple
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The identifier for the CTOP controlling the flight (CTOP).
source	<xs:element name="ctopIdentifier" type="fb:CharacterStringType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>The identifier for the CTOP controlling the flight (CTOP).</xs:documentation>   </xs:annotation> </xs:element>
