complexType NasAdaptedArrivalRouteType

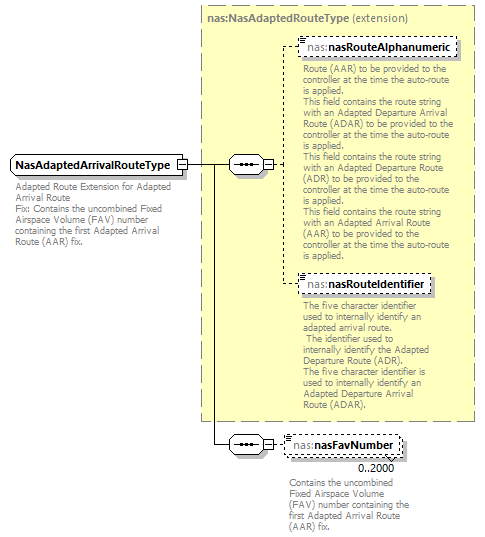

diagram Nas_diagrams/Nas_p374.png
namespace http://www.fixm.aero/ext/nas/4.3
type extension of nas:NasAdaptedRouteType
properties
base nas:NasAdaptedRouteType
children nas:nasRouteAlphanumeric nas:nasRouteIdentifier nas:nasFavNumber
used by
element NasRouteInformationType/adaptedArrivalRoute
annotation
documentation
Adapted Route Extension for Adapted Arrival Route
Fix: Contains the uncombined Fixed Airspace Volume (FAV) number containing the first Adapted Arrival Route (AAR) fix.
source <xs:complexType name="NasAdaptedArrivalRouteType">
  <xs:annotation>
    <xs:documentation>Adapted Route Extension for Adapted Arrival Route
Fix: Contains the uncombined Fixed Airspace Volume (FAV) number containing the first Adapted Arrival Route (AAR) fix.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="nas:NasAdaptedRouteType">
      <xs:sequence>
        <xs:element name="nasFavNumber" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="2000">
          <xs:annotation>
            <xs:documentation>Contains the uncombined Fixed Airspace Volume (FAV) number containing the first Adapted Arrival Route (AAR) fix.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element NasAdaptedArrivalRouteType/nasFavNumber
diagram Nas_diagrams/Nas_p375.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CharacterStringType
properties
minOcc 0
maxOcc 2000
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
Contains the uncombined Fixed Airspace Volume (FAV) number containing the first Adapted Arrival Route (AAR) fix.
source <xs:element name="nasFavNumber" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="2000">
  <xs:annotation>
    <xs:documentation>Contains the uncombined Fixed Airspace Volume (FAV) number containing the first Adapted Arrival Route (AAR) fix.</xs:documentation>
  </xs:annotation>
</xs:element>
