complexType DepartureDelayType

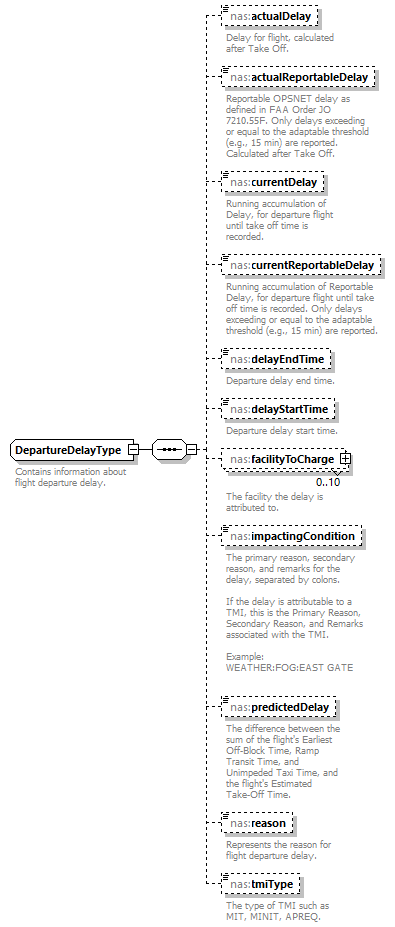

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:actualDelay nas:actualReportableDelay nas:currentDelay nas:currentReportableDelay nas:delayEndTime nas:delayStartTime nas:facilityToCharge nas:impactingCondition nas:predictedDelay nas:reason nas:tmiType
used by	element  NasDepartureType/departureDelay
annotation	documentation Contains information about flight departure delay.
source	<xs:complexType name="DepartureDelayType">   <xs:annotation>     <xs:documentation>Contains information about flight departure delay.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="actualDelay" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Delay for flight, calculated after Take Off.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="actualReportableDelay" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Reportable OPSNET delay as defined in FAA Order JO 7210.55F. Only delays exceeding or equal to the adaptable threshold (e.g., 15 min) are reported.  Calculated after Take Off.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="currentDelay" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Running accumulation of Delay, for departure flight until take off time is recorded.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="currentReportableDelay" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Running accumulation of Reportable Delay, for departure flight until take off time is recorded. Only delays exceeding or equal to the adaptable threshold (e.g., 15 min) are reported.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="delayEndTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Departure delay end time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="delayStartTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Departure delay start time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="facilityToCharge" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="10">       <xs:annotation>         <xs:documentation>The facility the delay is attributed to.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="impactingCondition" type="nas:CharacterString250Type" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The primary reason, secondary reason, and remarks for the delay, separated by colons. If the delay is attributable to a TMI, this is the Primary Reason, Secondary Reason, and Remarks associated with the TMI. Example: WEATHER:FOG:EAST GATE</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="predictedDelay" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The difference between the sum of the flight's Earliest Off-Block Time, Ramp Transit Time, and Unimpeded Taxi Time, and the flight's Estimated Take-Off Time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="reason" type="nas:DepartureDelayReasonType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Represents the reason for flight departure delay.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="tmiType" type="nas:TmiTypeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The type of TMI such as MIT, MINIT, APREQ.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element DepartureDelayType/actualDelay

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Delay for flight, calculated after Take Off.
source	<xs:element name="actualDelay" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Delay for flight, calculated after Take Off.</xs:documentation>   </xs:annotation> </xs:element>

element DepartureDelayType/actualReportableDelay

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Reportable OPSNET delay as defined in FAA Order JO 7210.55F. Only delays exceeding or equal to the adaptable threshold (e.g., 15 min) are reported.  Calculated after Take Off.
source	<xs:element name="actualReportableDelay" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Reportable OPSNET delay as defined in FAA Order JO 7210.55F. Only delays exceeding or equal to the adaptable threshold (e.g., 15 min) are reported.  Calculated after Take Off.</xs:documentation>   </xs:annotation> </xs:element>

element DepartureDelayType/currentDelay

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Running accumulation of Delay, for departure flight until take off time is recorded.
source	<xs:element name="currentDelay" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Running accumulation of Delay, for departure flight until take off time is recorded.</xs:documentation>   </xs:annotation> </xs:element>

element DepartureDelayType/currentReportableDelay

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Running accumulation of Reportable Delay, for departure flight until take off time is recorded. Only delays exceeding or equal to the adaptable threshold (e.g., 15 min) are reported.
source	<xs:element name="currentReportableDelay" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Running accumulation of Reportable Delay, for departure flight until take off time is recorded. Only delays exceeding or equal to the adaptable threshold (e.g., 15 min) are reported.</xs:documentation>   </xs:annotation> </xs:element>

element DepartureDelayType/delayEndTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation Departure delay end time.
source	<xs:element name="delayEndTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Departure delay end time.</xs:documentation>   </xs:annotation> </xs:element>

element DepartureDelayType/delayStartTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation Departure delay start time.
source	<xs:element name="delayStartTime" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Departure delay start time.</xs:documentation>   </xs:annotation> </xs:element>

element DepartureDelayType/facilityToCharge

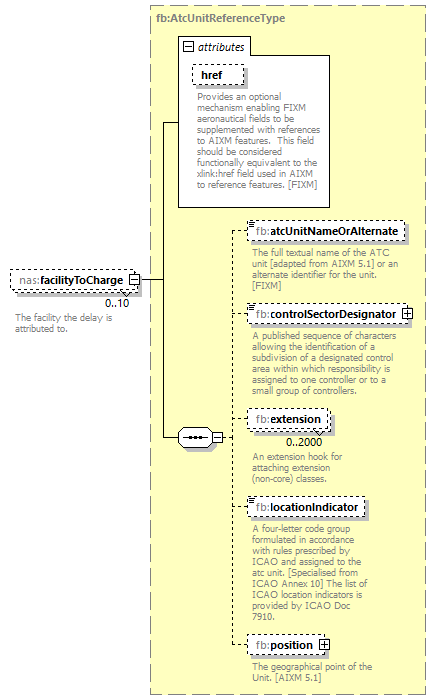

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:AtcUnitReferenceType
properties	minOcc  0 maxOcc  10 content  complex nillable  true
children	fb:atcUnitNameOrAlternate fb:controlSectorDesignator fb:extension fb:locationIndicator fb:position
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation The facility the delay is attributed to.
source	<xs:element name="facilityToCharge" type="fb:AtcUnitReferenceType" nillable="true" minOccurs="0" maxOccurs="10">   <xs:annotation>     <xs:documentation>The facility the delay is attributed to.</xs:documentation>   </xs:annotation> </xs:element>

element DepartureDelayType/impactingCondition

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:CharacterString250Type
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  1 maxLength  250
annotation	documentation The primary reason, secondary reason, and remarks for the delay, separated by colons. If the delay is attributable to a TMI, this is the Primary Reason, Secondary Reason, and Remarks associated with the TMI. Example: WEATHER:FOG:EAST GATE
source	<xs:element name="impactingCondition" type="nas:CharacterString250Type" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The primary reason, secondary reason, and remarks for the delay, separated by colons. If the delay is attributable to a TMI, this is the Primary Reason, Secondary Reason, and Remarks associated with the TMI. Example: WEATHER:FOG:EAST GATE</xs:documentation>   </xs:annotation> </xs:element>

element DepartureDelayType/predictedDelay

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The difference between the sum of the flight's Earliest Off-Block Time, Ramp Transit Time, and Unimpeded Taxi Time, and the flight's Estimated Take-Off Time.
source	<xs:element name="predictedDelay" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The difference between the sum of the flight's Earliest Off-Block Time, Ramp Transit Time, and Unimpeded Taxi Time, and the flight's Estimated Take-Off Time.</xs:documentation>   </xs:annotation> </xs:element>

element DepartureDelayType/reason

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:DepartureDelayReasonType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  WEATHER documentation Weather enumeration  EQUIPMENT documentation Equipment enumeration  RUNWAY_TAXIWAY documentation Runway/Taxiway enumeration  OTHER documentation Other enumeration  VOLUME documentation Volume
annotation	documentation Represents the reason for flight departure delay.
source	<xs:element name="reason" type="nas:DepartureDelayReasonType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Represents the reason for flight departure delay.</xs:documentation>   </xs:annotation> </xs:element>

element DepartureDelayType/tmiType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:TmiTypeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  AFP documentation Airspace Flow Program enumeration  AIRPORT documentation Airport enumeration  APREQ documentation Call for Release enumeration  CTOP documentation Collaborative Trajectory Options Program enumeration  DSP documentation Departure Sequencing Program enumeration  GDP documentation Ground Delay Program enumeration  GS documentation Ground Stop enumeration  MINIT documentation Minutes-In-Trail enumeration  MIT documentation Miles-In-Trail enumeration  STOP documentation Shut Off Traffic Flow enumeration  SWAP documentation Severe Weather Avoidance Plan enumeration  TBM documentation Time-Based Metering
annotation	documentation The type of TMI such as MIT, MINIT, APREQ.
source	<xs:element name="tmiType" type="nas:TmiTypeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The type of TMI such as MIT, MINIT, APREQ.</xs:documentation>   </xs:annotation> </xs:element>
