complexType EnRouteType

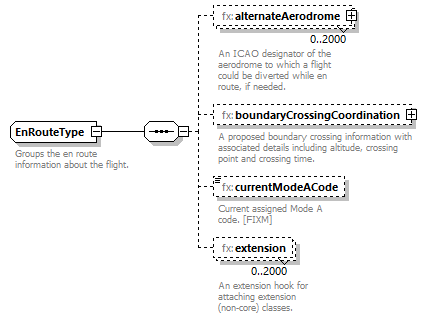

diagram Fixm_diagrams/Fixm_p310.png
namespace http://www.fixm.aero/flight/4.2
children fx:alternateAerodrome fx:boundaryCrossingCoordination fx:currentModeACode fx:extension
used by
element FlightType/enRoute
annotation
documentation
Groups the en route information about the flight.
source <xs:complexType name="EnRouteType">

<xs:annotation>

<xs:documentation>Groups the en route information about the flight.</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="alternateAerodrome" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An ICAO designator of the aerodrome to which a flight could be diverted while en route, if needed.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="boundaryCrossingCoordination" type="fx:BoundaryCrossingType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>A proposed boundary crossing information with associated details including altitude, crossing point and crossing time.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="currentModeACode" type="fb:ModeACodeType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Current assigned Mode A code. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:EnRouteExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element EnRouteType/alternateAerodrome

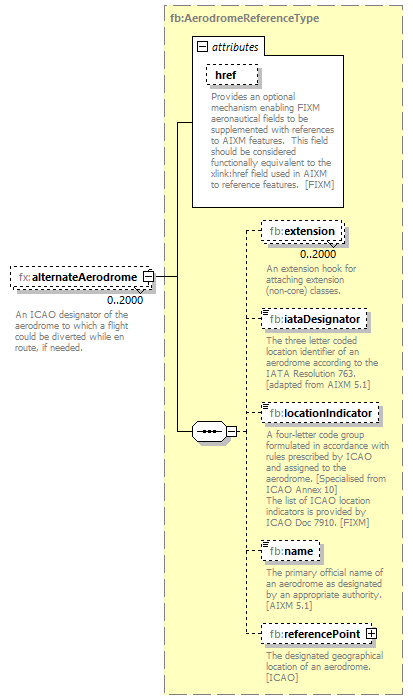

diagram Fixm_diagrams/Fixm_p311.png
namespace http://www.fixm.aero/flight/4.2
type fb:AerodromeReferenceType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
children fb:extension fb:iataDesignator fb:locationIndicator fb:name fb:referencePoint
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features.  [FIXM]
annotation
documentation
An ICAO designator of the aerodrome to which a flight could be diverted while en route, if needed.
source <xs:element name="alternateAerodrome" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An ICAO designator of the aerodrome to which a flight could be diverted while en route, if needed.</xs:documentation>

</xs:annotation>
</xs:element>

element EnRouteType/boundaryCrossingCoordination

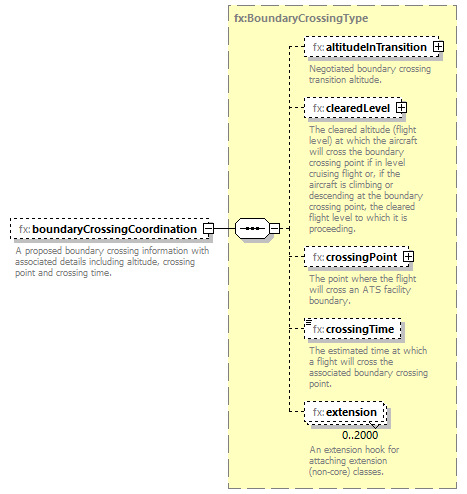

diagram Fixm_diagrams/Fixm_p312.png
namespace http://www.fixm.aero/flight/4.2
type fx:BoundaryCrossingType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:altitudeInTransition fx:clearedLevel fx:crossingPoint fx:crossingTime fx:extension
annotation
documentation
A proposed boundary crossing information with associated details including altitude, crossing point and crossing time.
source <xs:element name="boundaryCrossingCoordination" type="fx:BoundaryCrossingType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>A proposed boundary crossing information with associated details including altitude, crossing point and crossing time.</xs:documentation>

</xs:annotation>
</xs:element>

element EnRouteType/currentModeACode
diagram Fixm_diagrams/Fixm_p313.png
namespace http://www.fixm.aero/flight/4.2
type fb:ModeACodeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [0-7]{4}
annotation
documentation
Current assigned Mode A code. [FIXM]
source <xs:element name="currentModeACode" type="fb:ModeACodeType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Current assigned Mode A code. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>

element EnRouteType/extension
diagram Fixm_diagrams/Fixm_p314.png
namespace http://www.fixm.aero/flight/4.2
type fb:EnRouteExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:EnRouteExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>
