complexType ShippingInformationType

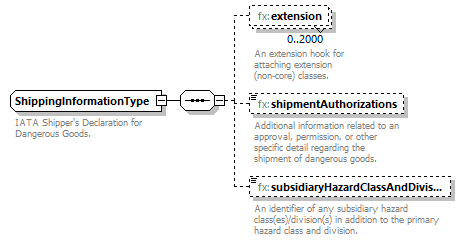

diagram
namespace	http://www.fixm.aero/flight/4.2
children	fx:extension fx:shipmentAuthorizations fx:subsidiaryHazardClassAndDivision
used by	element  DangerousGoodsType/shippingInformation
annotation	documentation IATA Shipper's Declaration for Dangerous Goods.
source	<xs:complexType name="ShippingInformationType">   <xs:annotation>     <xs:documentation>IATA Shipper's Declaration for Dangerous Goods.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="extension" type="fb:ShippingInformationExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="shipmentAuthorizations" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Additional information related to an approval, permission, or other specific detail regarding the shipment of dangerous goods.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="subsidiaryHazardClassAndDivision" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ShippingInformationType/extension

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:ShippingInformationExtensionType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
annotation	documentation An extension hook for attaching extension (non-core) classes.
source	<xs:element name="extension" type="fb:ShippingInformationExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>   </xs:annotation> </xs:element>

element ShippingInformationType/shipmentAuthorizations

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Additional information related to an approval, permission, or other specific detail regarding the shipment of dangerous goods.
source	<xs:element name="shipmentAuthorizations" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Additional information related to an approval, permission, or other specific detail regarding the shipment of dangerous goods.</xs:documentation>   </xs:annotation> </xs:element>

element ShippingInformationType/subsidiaryHazardClassAndDivision

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.
source	<xs:element name="subsidiaryHazardClassAndDivision" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.</xs:documentation>   </xs:annotation> </xs:element>
