complexType ReclearanceInFlightType

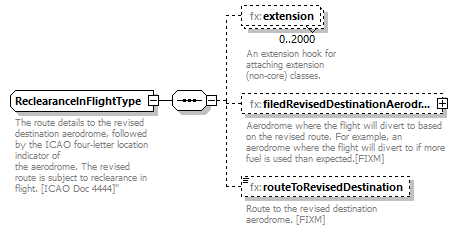

diagram
namespace	http://www.fixm.aero/flight/4.2
children	fx:extension fx:filedRevisedDestinationAerodrome fx:routeToRevisedDestination
used by	element  ArrivalType/reclearanceInFlight
annotation	documentation The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"
source	<xs:complexType name="ReclearanceInFlightType">   <xs:annotation>     <xs:documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="extension" type="fb:ReclearanceInFlightExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="filedRevisedDestinationAerodrome" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Aerodrome where the flight will divert to based on the revised route. For example, an aerodrome where the flight will divert to if more fuel is used than expected.[FIXM]</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="routeToRevisedDestination" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Route to the revised destination aerodrome. [FIXM]</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ReclearanceInFlightType/extension

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:ReclearanceInFlightExtensionType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
annotation	documentation An extension hook for attaching extension (non-core) classes.
source	<xs:element name="extension" type="fb:ReclearanceInFlightExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>   </xs:annotation> </xs:element>

element ReclearanceInFlightType/filedRevisedDestinationAerodrome

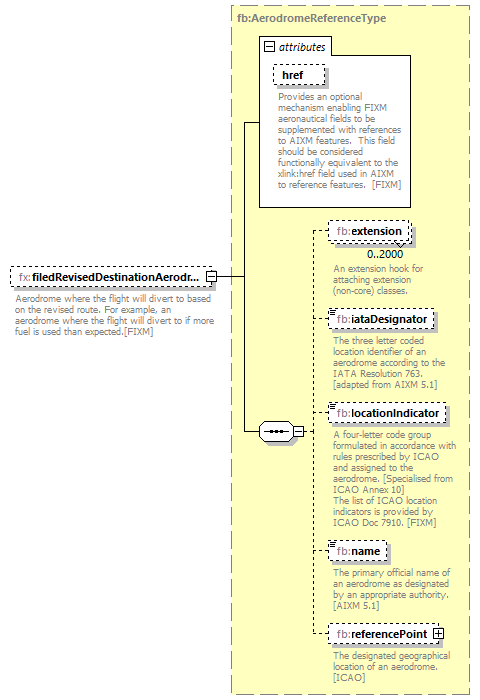

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:AerodromeReferenceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:extension fb:iataDesignator fb:locationIndicator fb:name fb:referencePoint
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features.  [FIXM]
annotation	documentation Aerodrome where the flight will divert to based on the revised route. For example, an aerodrome where the flight will divert to if more fuel is used than expected.[FIXM]
source	<xs:element name="filedRevisedDestinationAerodrome" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Aerodrome where the flight will divert to based on the revised route. For example, an aerodrome where the flight will divert to if more fuel is used than expected.[FIXM]</xs:documentation>   </xs:annotation> </xs:element>

element ReclearanceInFlightType/routeToRevisedDestination

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Route to the revised destination aerodrome. [FIXM]
source	<xs:element name="routeToRevisedDestination" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Route to the revised destination aerodrome. [FIXM]</xs:documentation>   </xs:annotation> </xs:element>
