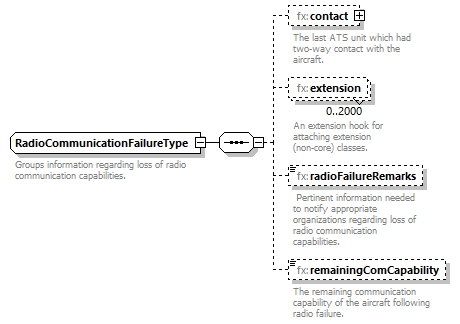

complexType RadioCommunicationFailureType

diagram
namespace	http://www.fixm.aero/flight/4.2
children	fx:contact fx:extension fx:radioFailureRemarks fx:remainingComCapability
used by	element  FlightType/radioCommunicationFailure
annotation	documentation Groups information regarding loss of radio communication capabilities.
source	<xs:complexType name="RadioCommunicationFailureType">   <xs:annotation>     <xs:documentation>Groups information regarding loss of radio communication capabilities.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="contact" type="fx:LastContactType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The last ATS unit which had two-way contact with the aircraft.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="extension" type="fb:RadioCommunicationFailureExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="radioFailureRemarks" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation> Pertinent information needed to notify appropriate organizations regarding loss of radio communication capabilities.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="remainingComCapability" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The remaining communication capability of the aircraft following radio failure.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

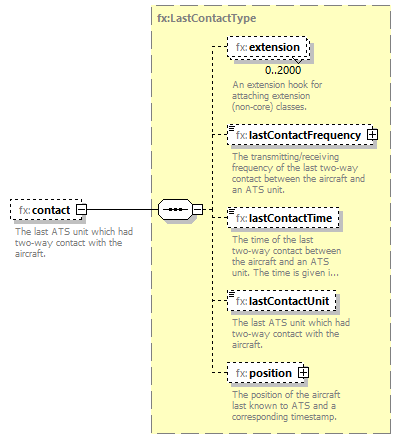

element RadioCommunicationFailureType/contact

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fx:LastContactType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fx:extension fx:lastContactFrequency fx:lastContactTime fx:lastContactUnit fx:position
annotation	documentation The last ATS unit which had two-way contact with the aircraft.
source	<xs:element name="contact" type="fx:LastContactType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The last ATS unit which had two-way contact with the aircraft.</xs:documentation>   </xs:annotation> </xs:element>

element RadioCommunicationFailureType/extension

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:RadioCommunicationFailureExtensionType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
annotation	documentation An extension hook for attaching extension (non-core) classes.
source	<xs:element name="extension" type="fb:RadioCommunicationFailureExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>   </xs:annotation> </xs:element>

element RadioCommunicationFailureType/radioFailureRemarks

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Pertinent information needed to notify appropriate organizations regarding loss of radio communication capabilities.
source	<xs:element name="radioFailureRemarks" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> Pertinent information needed to notify appropriate organizations regarding loss of radio communication capabilities.</xs:documentation>   </xs:annotation> </xs:element>

element RadioCommunicationFailureType/remainingComCapability

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The remaining communication capability of the aircraft following radio failure.
source	<xs:element name="remainingComCapability" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The remaining communication capability of the aircraft following radio failure.</xs:documentation>   </xs:annotation> </xs:element>
