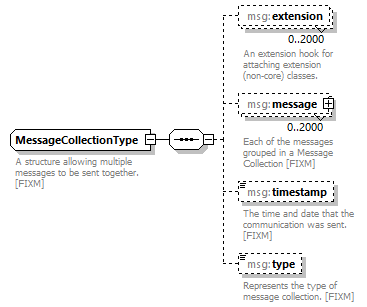

complexType MessageCollectionType

diagram
namespace	http://www.fixm.aero/app/msg/1.0
children	msg:extension msg:message msg:timestamp msg:type
used by	element  MessageCollection
annotation	documentation A structure allowing multiple messages to be sent together. [FIXM]
source	<xs:complexType name="MessageCollectionType">   <xs:annotation>     <xs:documentation>A structure allowing multiple messages to be sent together. [FIXM]</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="extension" type="msg:MessageCollectionExtensionType" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="message" type="msg:MessageType" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>Each of the messages grouped in a Message Collection [FIXM]</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="timestamp" type="fb:TimeType" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The time and date that the communication was sent. [FIXM]</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="type" type="fb:CharacterStringType" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Represents the type of message collection. [FIXM]</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element MessageCollectionType/extension

diagram
namespace	http://www.fixm.aero/app/msg/1.0
type	msg:MessageCollectionExtensionType
properties	minOcc  0 maxOcc  2000 content  complex
annotation	documentation An extension hook for attaching extension (non-core) classes.
source	<xs:element name="extension" type="msg:MessageCollectionExtensionType" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>   </xs:annotation> </xs:element>

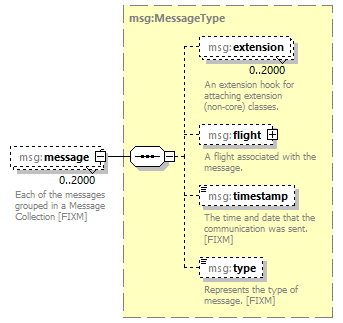

element MessageCollectionType/message

diagram
namespace	http://www.fixm.aero/app/msg/1.0
type	msg:MessageType
properties	minOcc  0 maxOcc  2000 content  complex
children	msg:extension msg:flight msg:timestamp msg:type
annotation	documentation Each of the messages grouped in a Message Collection [FIXM]
source	<xs:element name="message" type="msg:MessageType" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>Each of the messages grouped in a Message Collection [FIXM]</xs:documentation>   </xs:annotation> </xs:element>

element MessageCollectionType/timestamp

diagram
namespace	http://www.fixm.aero/app/msg/1.0
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation The time and date that the communication was sent. [FIXM]
source	<xs:element name="timestamp" type="fb:TimeType" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The time and date that the communication was sent. [FIXM]</xs:documentation>   </xs:annotation> </xs:element>

element MessageCollectionType/type

diagram
namespace	http://www.fixm.aero/app/msg/1.0
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Represents the type of message collection. [FIXM]
source	<xs:element name="type" type="fb:CharacterStringType" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Represents the type of message collection. [FIXM]</xs:documentation>   </xs:annotation> </xs:element>
