complexType LevelConstraintType

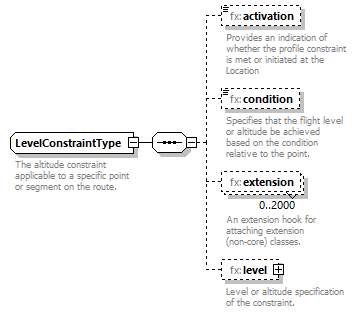

diagram
namespace	http://www.fixm.aero/flight/4.2
children	fx:activation fx:condition fx:extension fx:level
used by	element  RouteTrajectoryConstraintType/level
annotation	documentation The altitude constraint applicable to a specific point or segment on the route.
source	<xs:complexType name="LevelConstraintType">   <xs:annotation>     <xs:documentation>The altitude constraint applicable to a specific point or segment on the route. </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="activation" type="fx:ActivationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Provides an indication of whether the profile constraint is met or initiated at the Location</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="condition" type="fx:LevelConditionType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Specifies that the flight level or altitude be achieved based on the condition relative to the point.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="extension" type="fb:LevelConstraintExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="level" type="fb:FlightLevelOrAltitudeOrRangeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Level or altitude specification of the constraint.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element LevelConstraintType/activation

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fx:ActivationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  PLAN_TO_ATTAIN enumeration  PLAN_TO_COMMENCE
annotation	documentation Provides an indication of whether the profile constraint is met or initiated at the Location
source	<xs:element name="activation" type="fx:ActivationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Provides an indication of whether the profile constraint is met or initiated at the Location</xs:documentation>   </xs:annotation> </xs:element>

element LevelConstraintType/condition

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fx:LevelConditionType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  AT enumeration  AT_OR_ABOVE enumeration  AT_OR_BELOW enumeration  BETWEEN
annotation	documentation Specifies that the flight level or altitude be achieved based on the condition relative to the point.
source	<xs:element name="condition" type="fx:LevelConditionType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Specifies that the flight level or altitude be achieved based on the condition relative to the point.</xs:documentation>   </xs:annotation> </xs:element>

element LevelConstraintType/extension

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:LevelConstraintExtensionType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
annotation	documentation An extension hook for attaching extension (non-core) classes.
source	<xs:element name="extension" type="fb:LevelConstraintExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>   </xs:annotation> </xs:element>

element LevelConstraintType/level

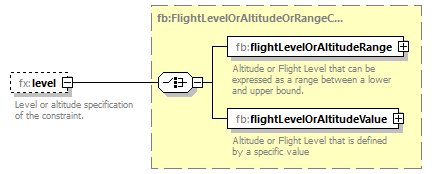

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:FlightLevelOrAltitudeOrRangeChoiceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:flightLevelOrAltitudeRange fb:flightLevelOrAltitudeValue
annotation	documentation Level or altitude specification of the constraint.
source	<xs:element name="level" type="fb:FlightLevelOrAltitudeOrRangeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Level or altitude specification of the constraint.</xs:documentation>   </xs:annotation> </xs:element>
