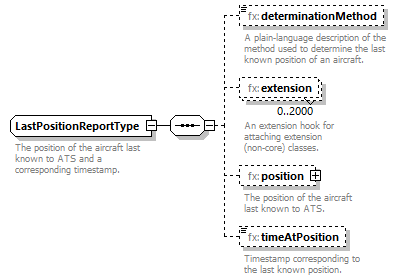

complexType LastPositionReportType

diagram
namespace	http://www.fixm.aero/flight/4.2
children	fx:determinationMethod fx:extension fx:position fx:timeAtPosition
used by	element  LastContactType/position
annotation	documentation The position of the aircraft last known to ATS and a corresponding timestamp.
source	<xs:complexType name="LastPositionReportType">   <xs:annotation>     <xs:documentation>The position of the aircraft last known to ATS and a corresponding timestamp.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="determinationMethod" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>A plain-language description of the method used to determine the last known position of an aircraft.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="extension" type="fb:LastPositionReportExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="position" type="fb:SignificantPointChoiceType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The position of the aircraft last known to ATS.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="timeAtPosition" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Timestamp corresponding to the last known position.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element LastPositionReportType/determinationMethod

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation A plain-language description of the method used to determine the last known position of an aircraft.
source	<xs:element name="determinationMethod" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>A plain-language description of the method used to determine the last known position of an aircraft.</xs:documentation>   </xs:annotation> </xs:element>

element LastPositionReportType/extension

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:LastPositionReportExtensionType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
annotation	documentation An extension hook for attaching extension (non-core) classes.
source	<xs:element name="extension" type="fb:LastPositionReportExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>   </xs:annotation> </xs:element>

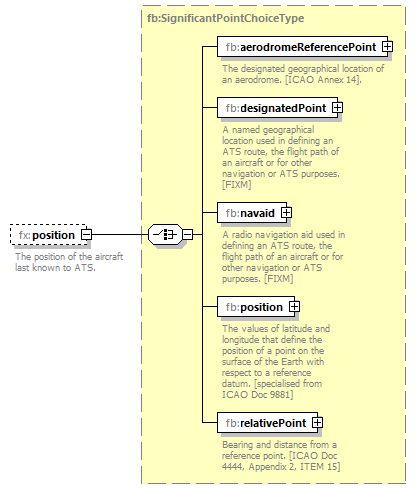

element LastPositionReportType/position

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:SignificantPointChoiceType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	fb:aerodromeReferencePoint fb:designatedPoint fb:navaid fb:position fb:relativePoint
annotation	documentation The position of the aircraft last known to ATS.
source	<xs:element name="position" type="fb:SignificantPointChoiceType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The position of the aircraft last known to ATS.</xs:documentation>   </xs:annotation> </xs:element>

element LastPositionReportType/timeAtPosition

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation Timestamp corresponding to the last known position.
source	<xs:element name="timeAtPosition" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Timestamp corresponding to the last known position.</xs:documentation>   </xs:annotation> </xs:element>
